Product Specifications

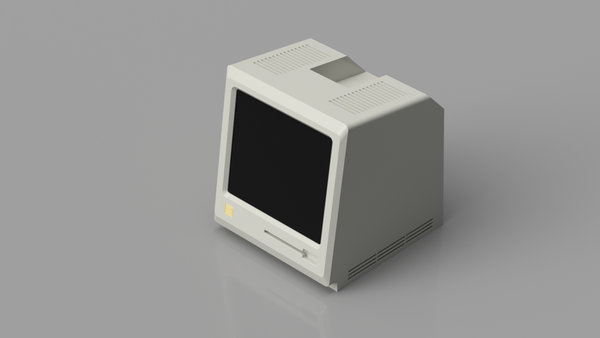

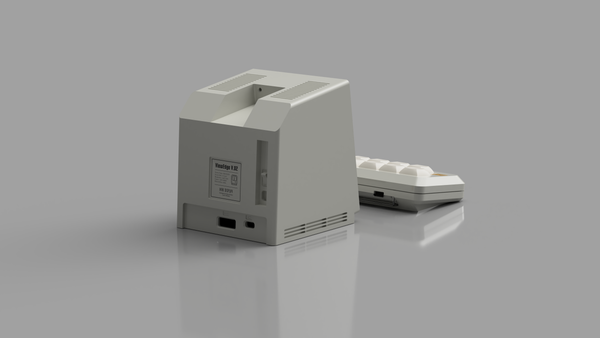

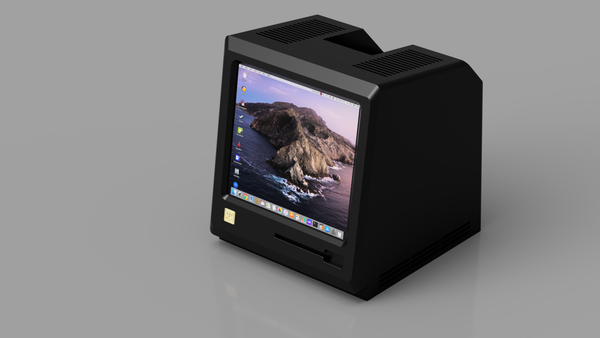

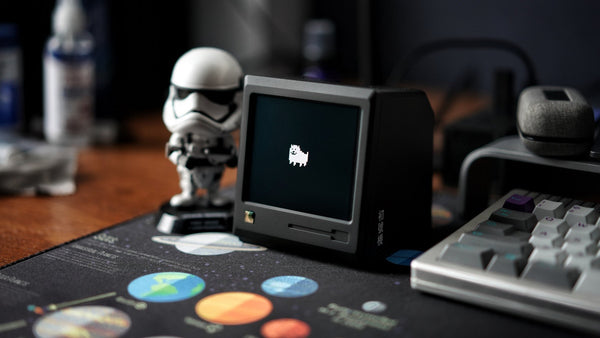

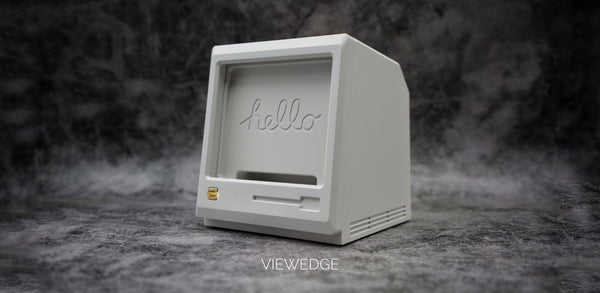

VE - Display

VE, or ViewEdge, is a fully functional mini display. Connect by HDMI to compatible devices for a great conversation piece and explore some of the many uses:

• Electronic photo album
• Video player
• Performance monitoring

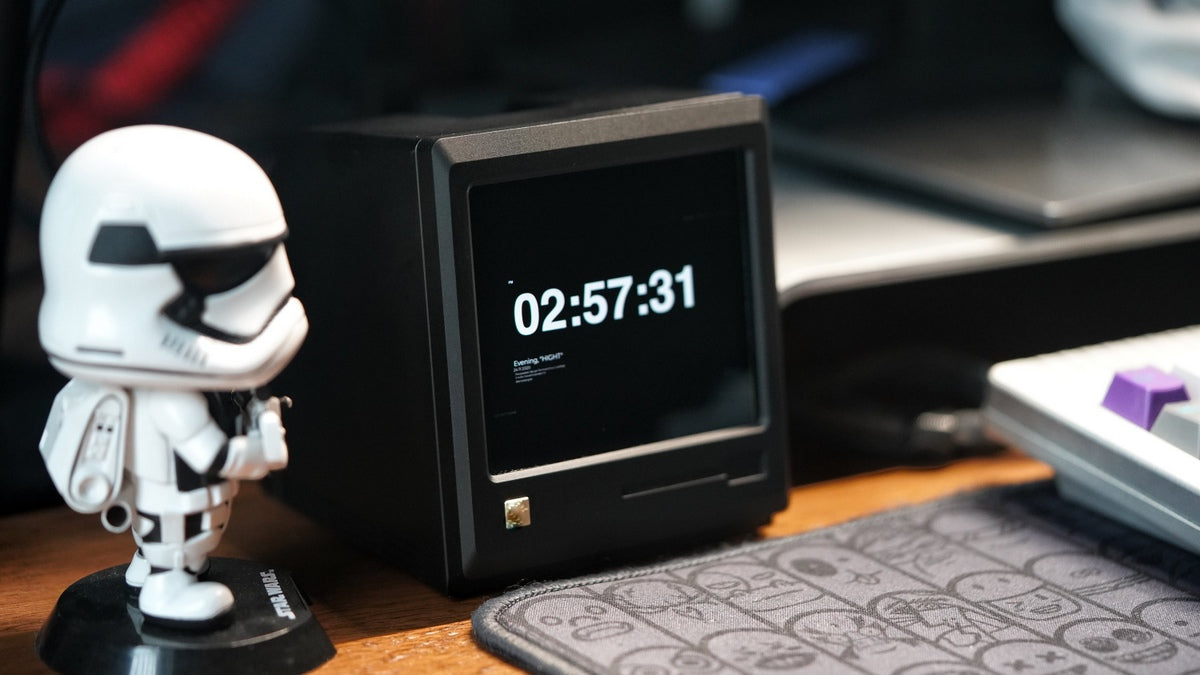

• Clock & Weather
• Reminders & Calendar

• Decoration

ViewEdge Specifications

Dimension: 93*100*105(mm)
Weight:1.2kg
Material: 6063 aviation-grade aluminum and C36700 brass
Finishing: EP-white/black for aluminum and clear coating for brass(anti-oxidation)
Power interface: Type-C
Signal interface: Standard HDMI
Screen type: AM-OLED
Screen size: 3.81 inches
Resolution: 1200*1080, 423PPI
Pixel arrangement: vertical RGB strip arrangement
Color gamut: 100% sRGB
Frame rate: 90GHz

ViewEdge Function Overview

1. Connection
Use HDMI cable to connect ViewEdge to the computer HDMI interface, plug in the power cord, the computer will automatically recognize the secondary screen, right-click on the desktop, select "Display Settings", you can see the connected ViewEdge, individual computers please manually adjust "Display direction" to get a better display effect. Select "Advanced display settings", you can see the detailed parameters of ViewEdge

Note：The default wiring of the driver board is WIN mode, this firmware achieves the best effect under WIN. There are two buttons on the drive board, one is a restat switch , and the other is a firmware switch. After pressing it, it will switch to firmware 2. Firmware 2 is a compatible firmware, compatible with WIN and MAC (but under WIN, it is not as good as The first firmware works well)

2. Compatibility
Support intel core graphics, Nvdia graphics, AMD graphics, both MAC and Win systems are supported

*Can not be compatible with AMD core graphics
*Can not be compatible with PS, XBOX, NS and other host devices

3. Function Overview
ViewEdge is a mini display, which can be used as a normal display, Part of desktop multimedia system
The designer recommends using the scene
Electronic photo album
Video player
Performance monitoring
Clock & Weather
Reminder function
Decoration needs

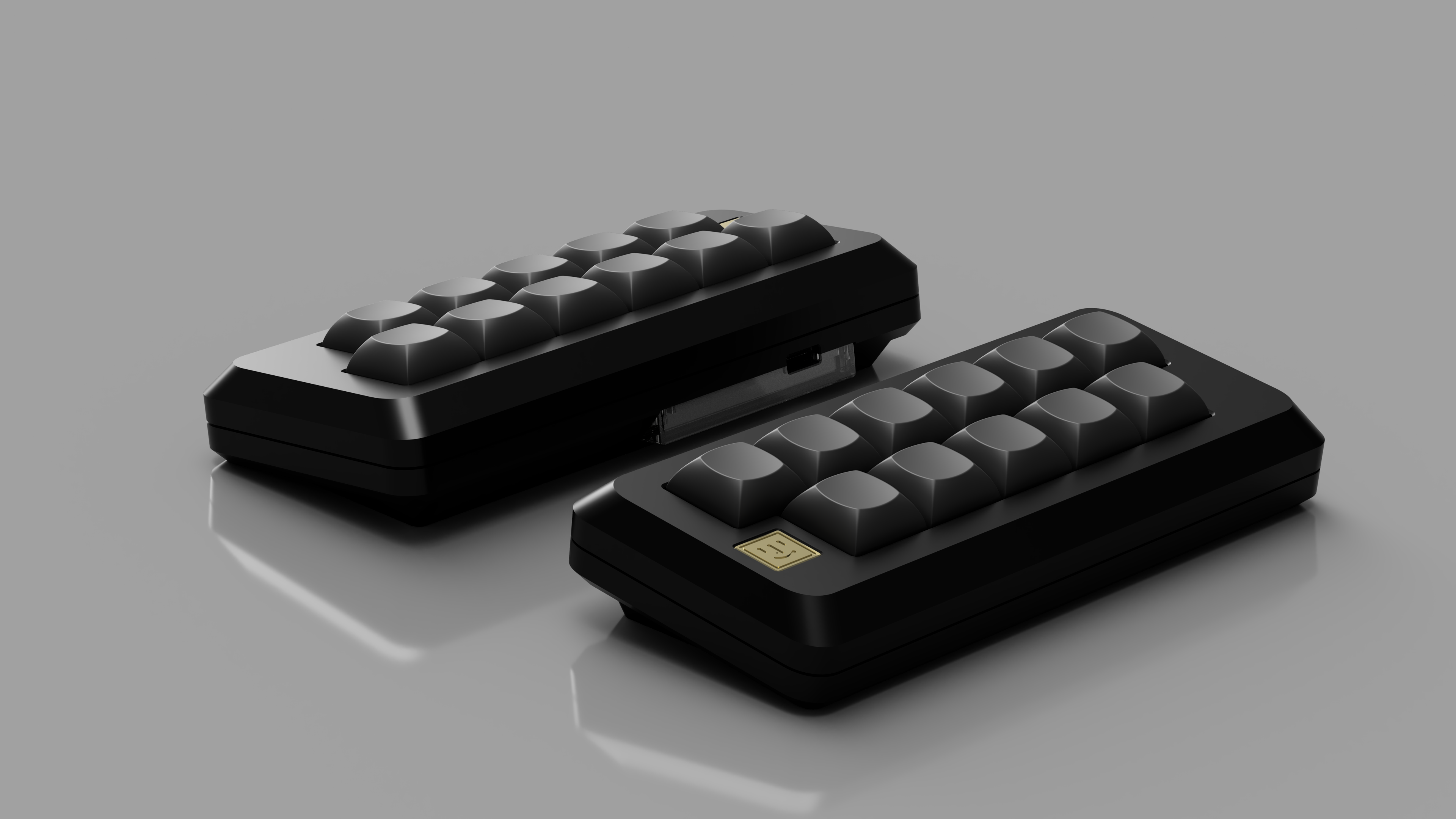

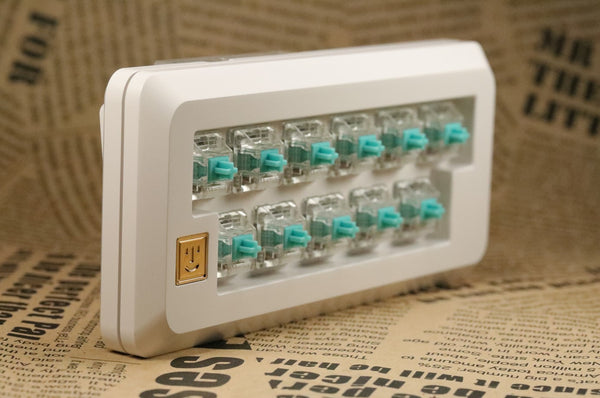

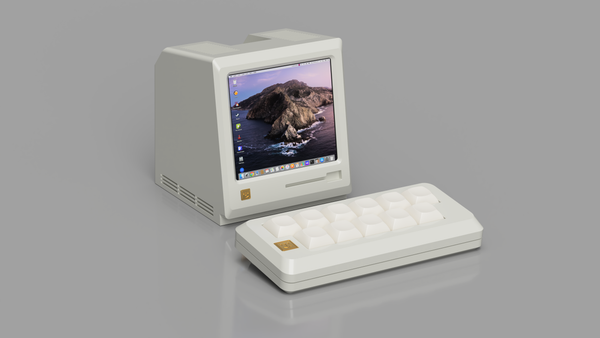

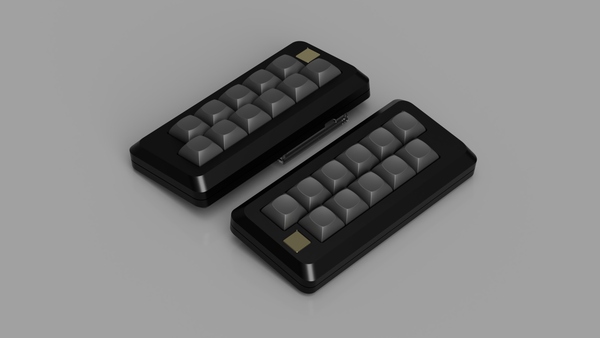

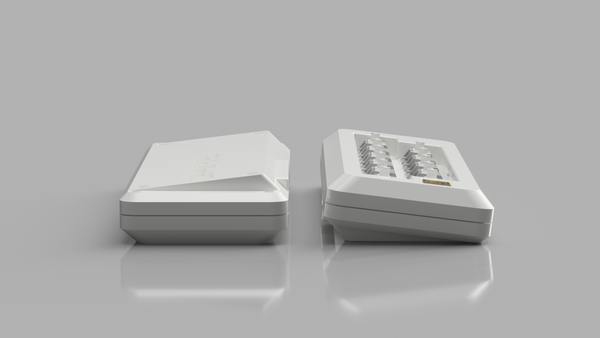

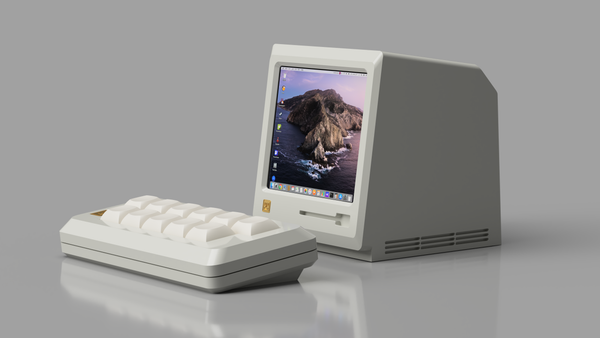

C11 - Macro Pad Keyboard

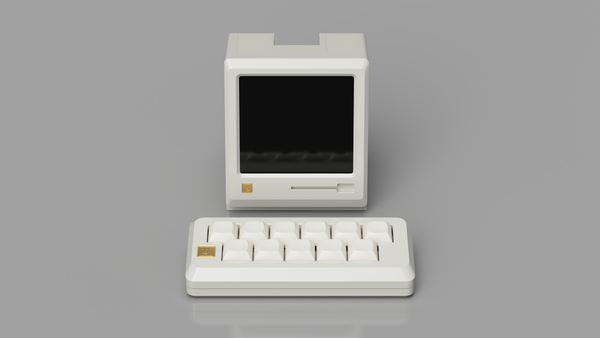

The C11 is based on the M0110, the keyboard that came with the original Macintosh, and is a tribute to the original Mac in the same style as the viewedge (another of the author's design). The design takes into account the current aesthetic and creates a more practical, ultra-mini keyboard. Cary_works is a custom keyboard studio from China whose tribute series (the DCR keyboard to IBM and the VC mini-monitor to Apple M0001) have gained good sales and reputation for their design and workmanship.

The C11 is based on the M0110, the keyboard that came with the original macintosh, and is a tribute to the original mac in the same style as the viewedge (another of the author's design). The design takes into account the current aesthetic and creates a more practical, ultra-mini keyboard.

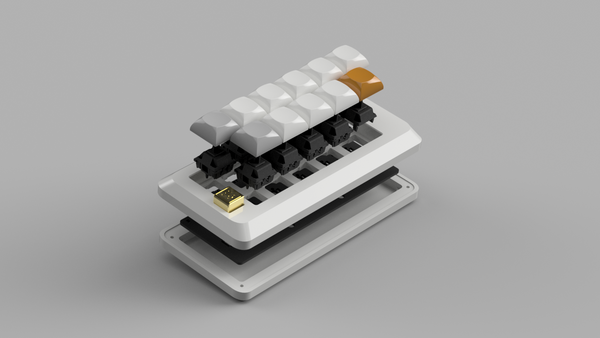

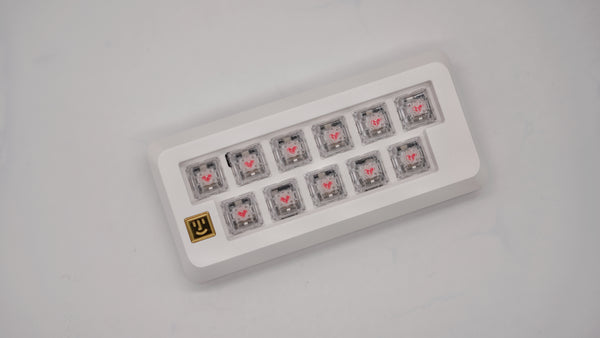

The kit includes C11 Case, PCB , 3U wire. There are no switch and keycaps.

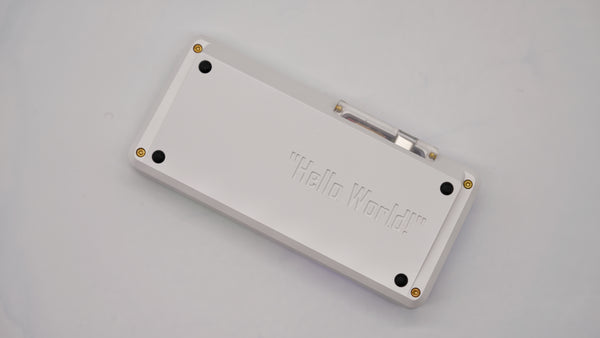

C11 Specifications

Dimensions: 138*64*25(mm)
Angle: 7°
Material: 6063 Aluminum and brass for name badge
Finishing: Case: EP(electrophoresis) black/EP white for the case and PVD for badge
Nameplate pattern: Smiley face(Blank pattern weight can be purchased separately
Interface: TYPE-C
PCB: wireless/ hot-swappable/ RGB/VIA support
Battery capacity: 800mAh
Bluetooth: 5.0(Switching between 2 devices can be connected)

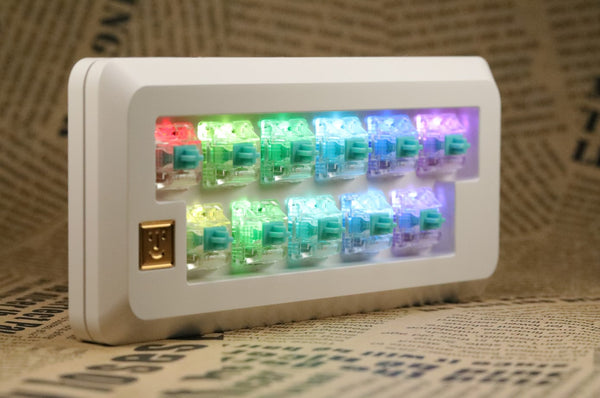

Lighting: RGB
Stabilizer: PCB mount
Packaging: Custom Military's Box

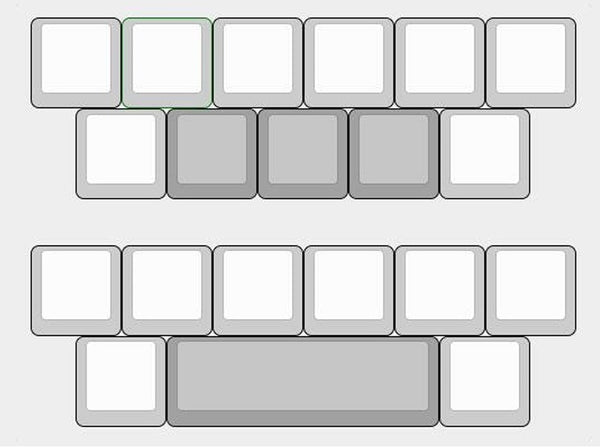

Supported Layout
