Make sure you read the disclaimer before purchasing this product.

You can get the Salvation extras PCB& Plates from here.

The SALVATION combines the soft and vibrant typing experience of an innovative leaf spring mounting system with a 60% tray case design.

https://salvun.com/pages/wilba-tech-salvation

The PCB is supported by silicon rubber standoffs attached to FR4 (fiberglass) leaf springs mounted to the case. Foam pads underneath the leaf springs provide vibration dampening and force modulation.

The leaf springs provide exceptional flexibility, allowing the entire plate/PCB subassembly to yield under keystrokes and vibrate in isolation from the case. The result is a typing experience that is soft and vibrant across the whole keyboard.

What's included

1 x SALVATION Aluminium Case
1 x SALVATION Brass Internal Weight
1 x SALVATION FR4 ANSI Plate
1 x wilba.tech WT60-D WEIRDFLEX PCB (solderable) or wilba.tech WT60-H1 AVOCADO PCB (hotswap)
4 x SKUF Silicone Rubber Feet
12 x SALVATION FR4 Leaf Springs
8 x Silicone Rubber Standoffs
16 x PORON Foam Pads
4 x M2x3mm threaded spacers (for PCB mount to leaf springs)
8 x M2x3.5mm screws (for PCB mount to leaf springs)
12 x M2x4mm screws (for leaf spring mount to case)
4 x M3x5mm screws (for internal weight mount to case)

Weight and Dimensions

Aluminum Case: 987g
Brass Internal Weight: 208g
Width: 304.80 mm
Depth: 115.31 mm

General Specification

7.5° slope
Bead-blasted anodized aluminum case
Bead-blasted cerakoted brass internal weight
Nickel plated, copper clad FR4 (fibreglass) plate
QMK compatible, fully programmable with VIA configurator
Made in Belgium

PCB Layout Support

Plate Layout Support

Disclaimer

The images shown are for illustration purposes only. The end product may vary in color from the photos as they are not guaranteed to be 100% accurate to the end product.

No exchange or return for this product.

All the in-stock unit grades were determined by iLumkb Team.

Grade A doesn't mean it is in perfect condition. The viewing distance for judging the product is around 50cm under regular lighting conditions with the keyboard sitting on a desk. Marks can be seen under harsh light or certain angles of view are not considered. Internal marks are not considered.

By purchasing this product, you are agreeing to the above terms.

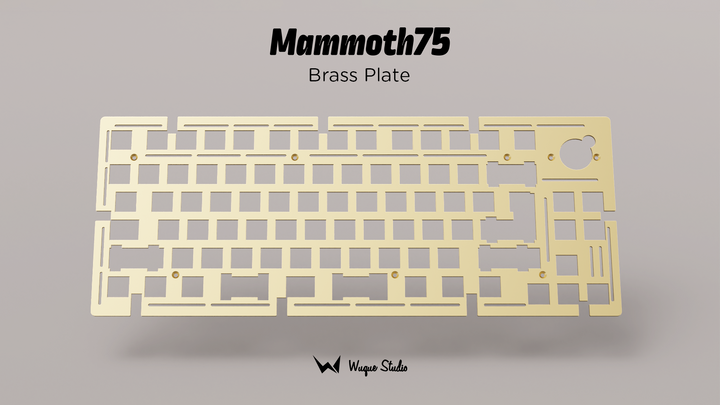

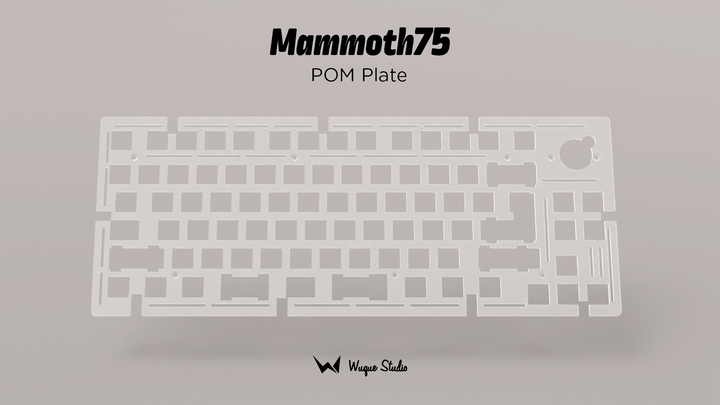

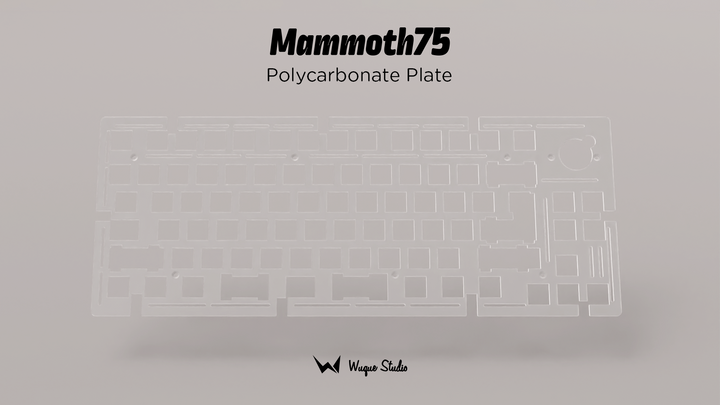

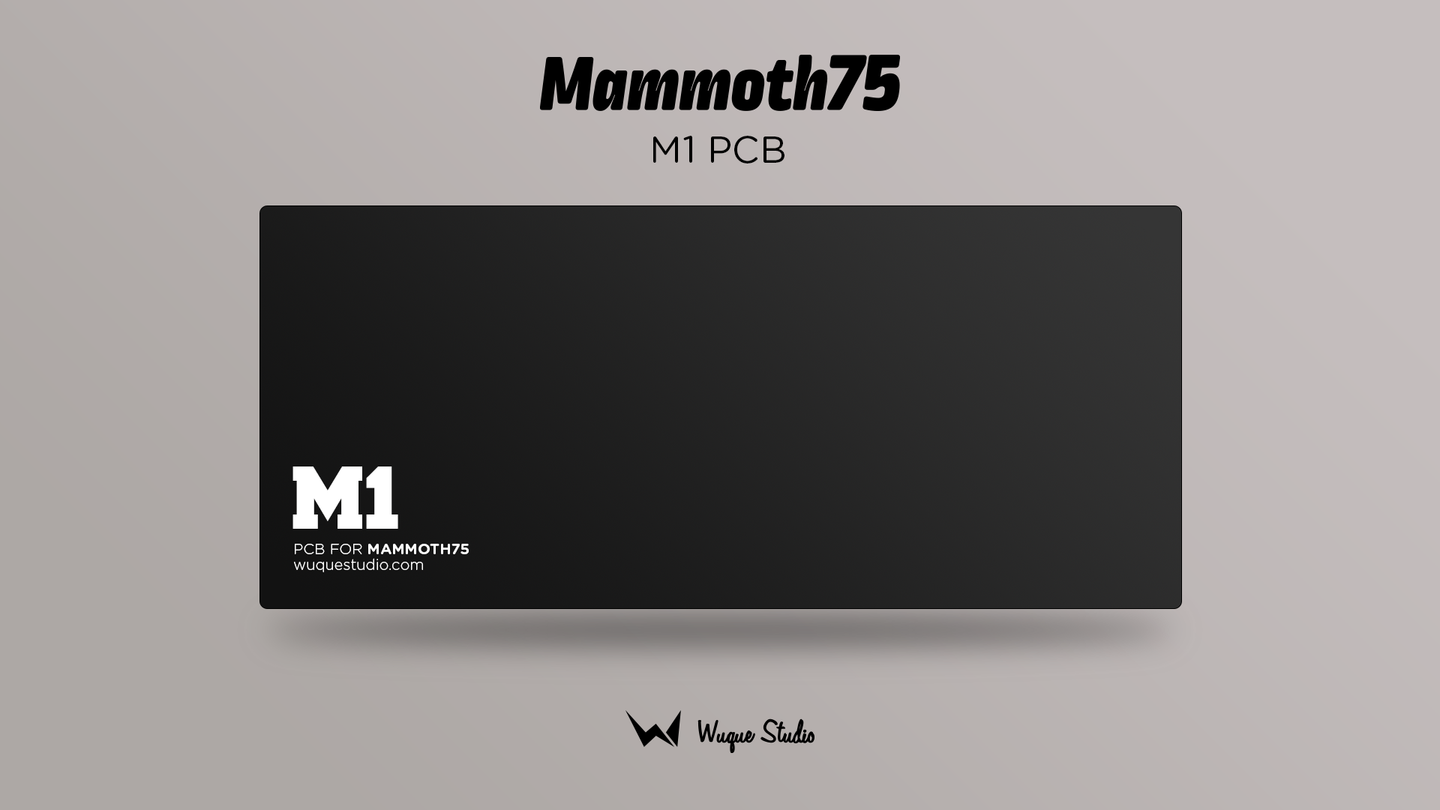

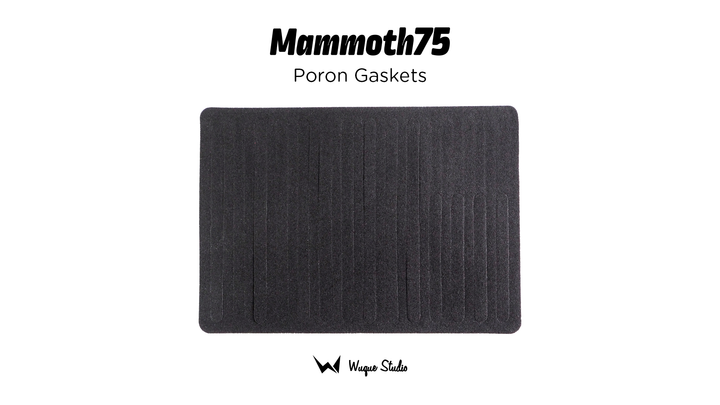

[In Stock] Mammoth75 Addons
