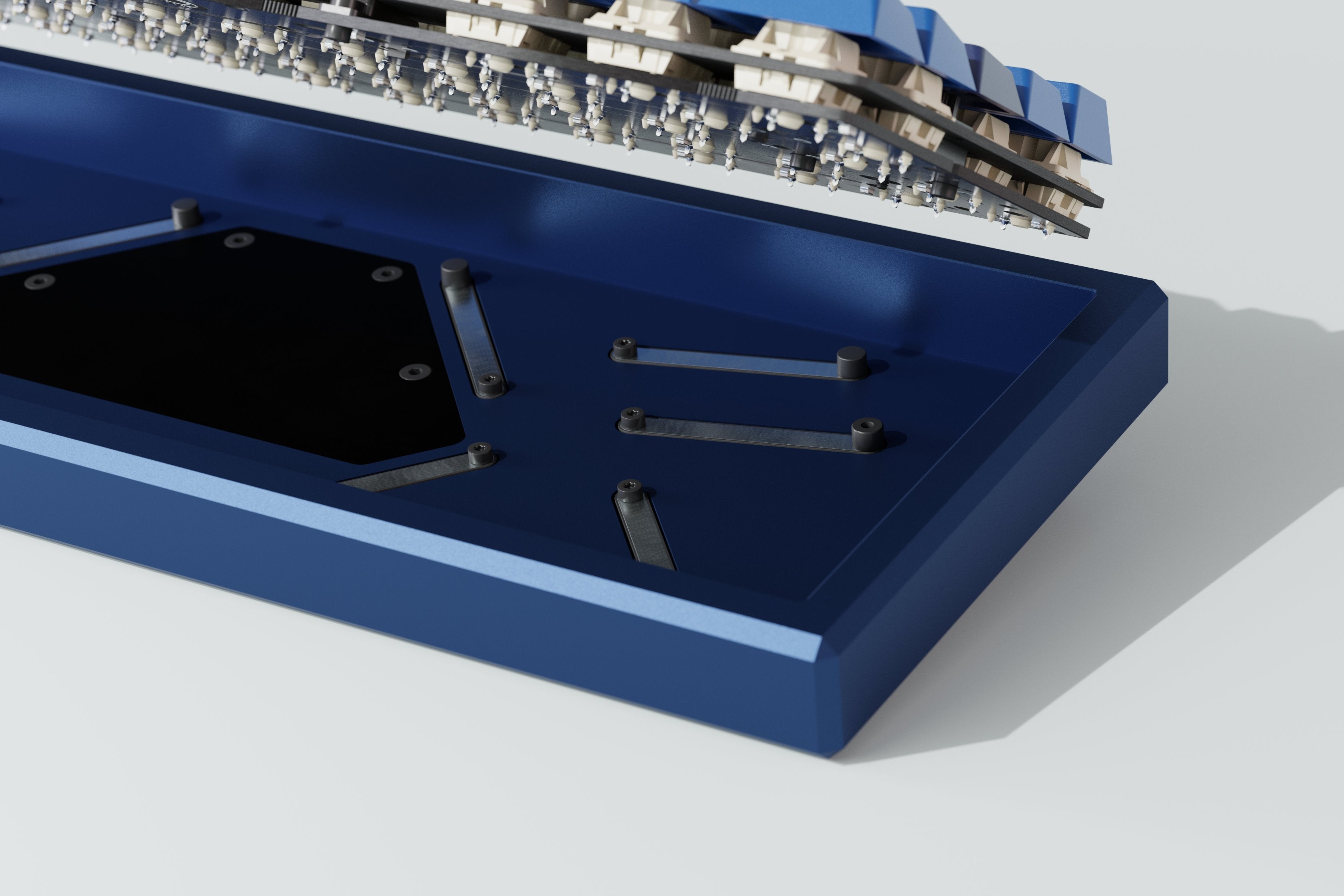

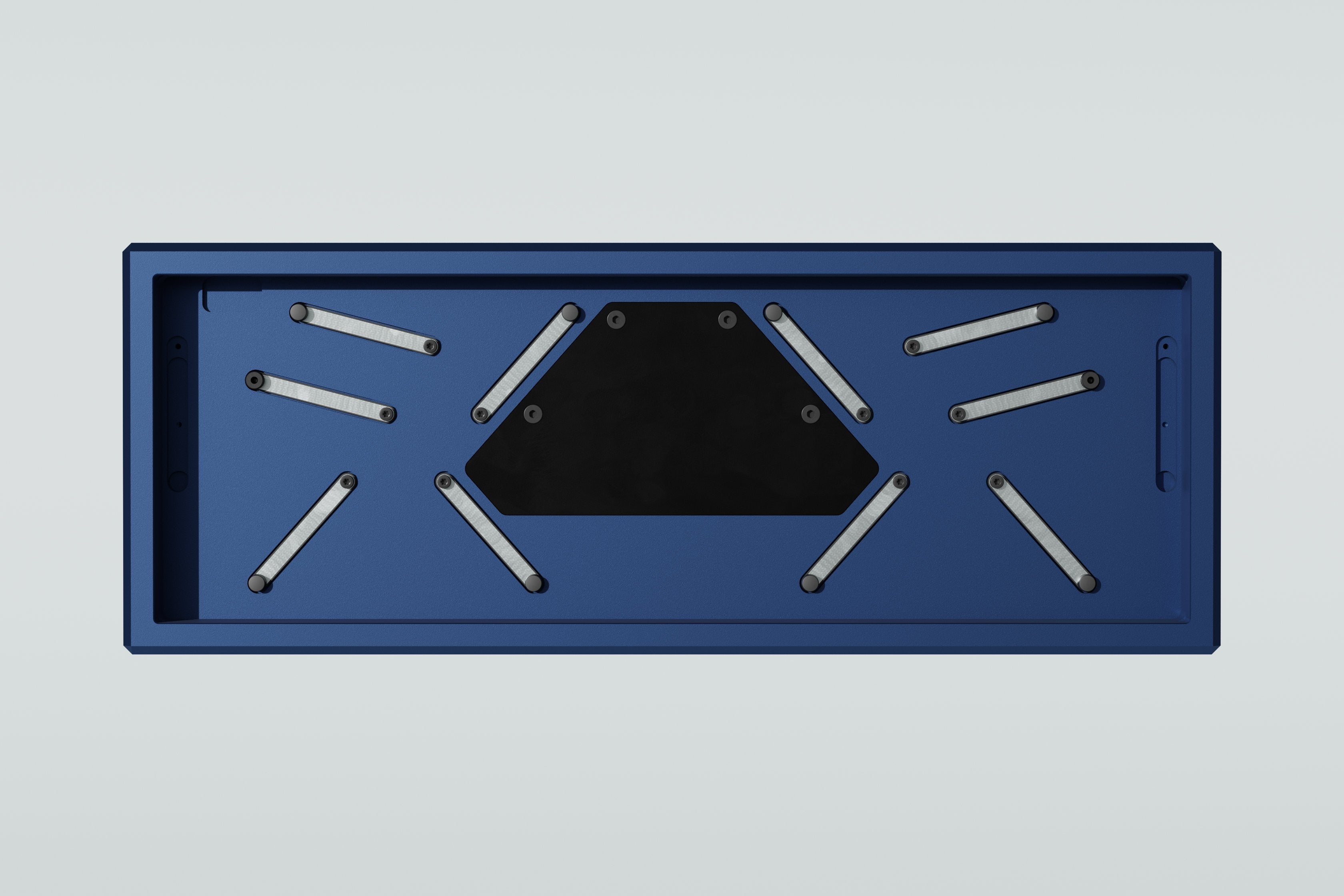

The PCB is supported by silicon rubber standoffs attached to FR4 (fiberglass) leaf springs mounted to the case. Foam pads underneath the leaf springs provide vibration dampening and force modulation.
The leaf springs provide exceptional flexibility, allowing the entire plate/PCB subassembly to yield under keystrokes and vibrate in isolation from the case. The result is a typing experience that is soft and vibrant across the whole keyboard.
4 x M2x3mm threaded spacers (for PCB mount to leaf springs)
8 x M2x3.5mm screws (for PCB mount to leaf springs)
12 x M2x4mm screws (for leaf spring mount to case)
4 x M3x5mm screws (for internal weight mount to case)
Weight and Dimensions
Aluminum Case: 987g
Brass Internal Weight: 208g
Width: 304.80 mm
Depth: 115.31 mm

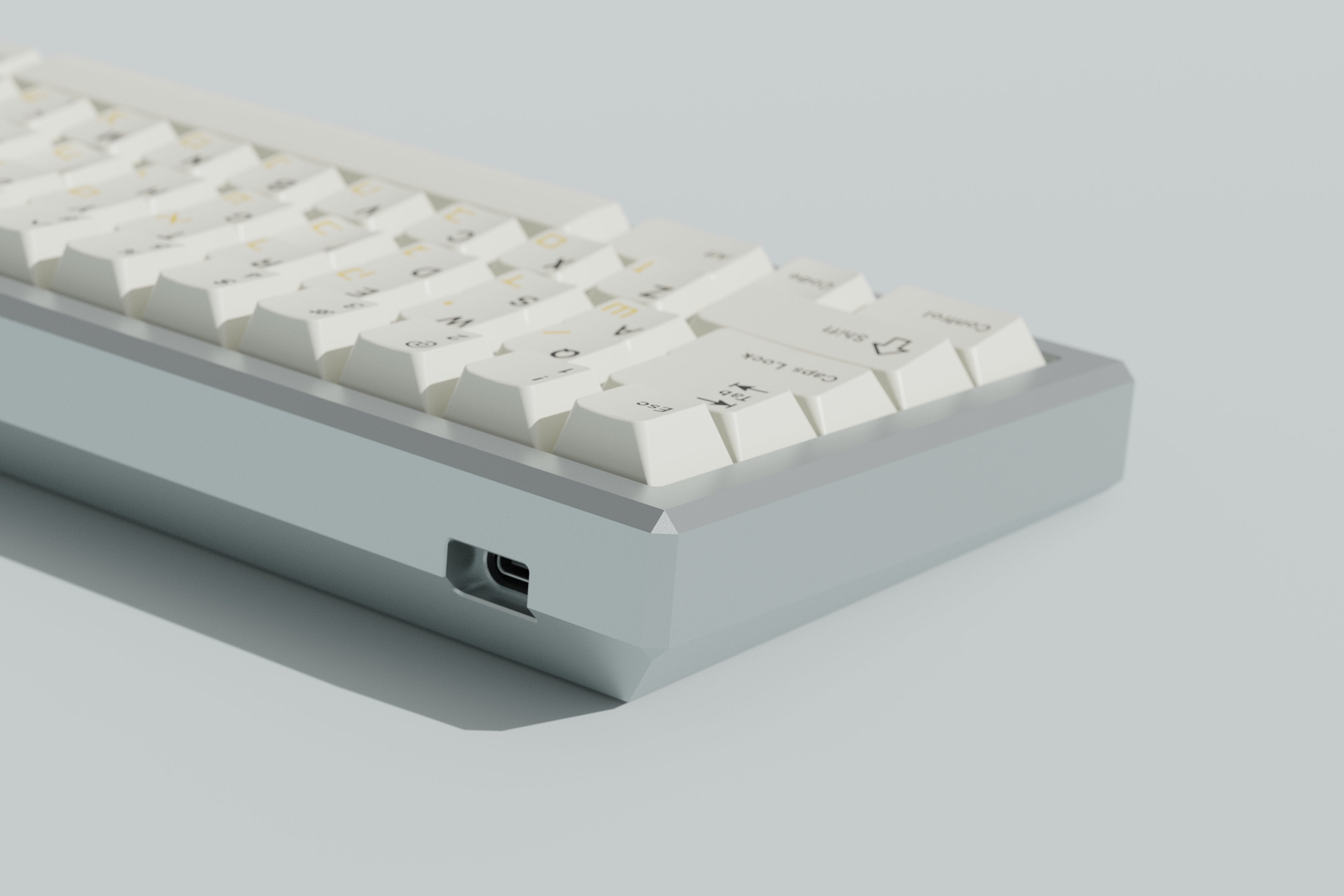

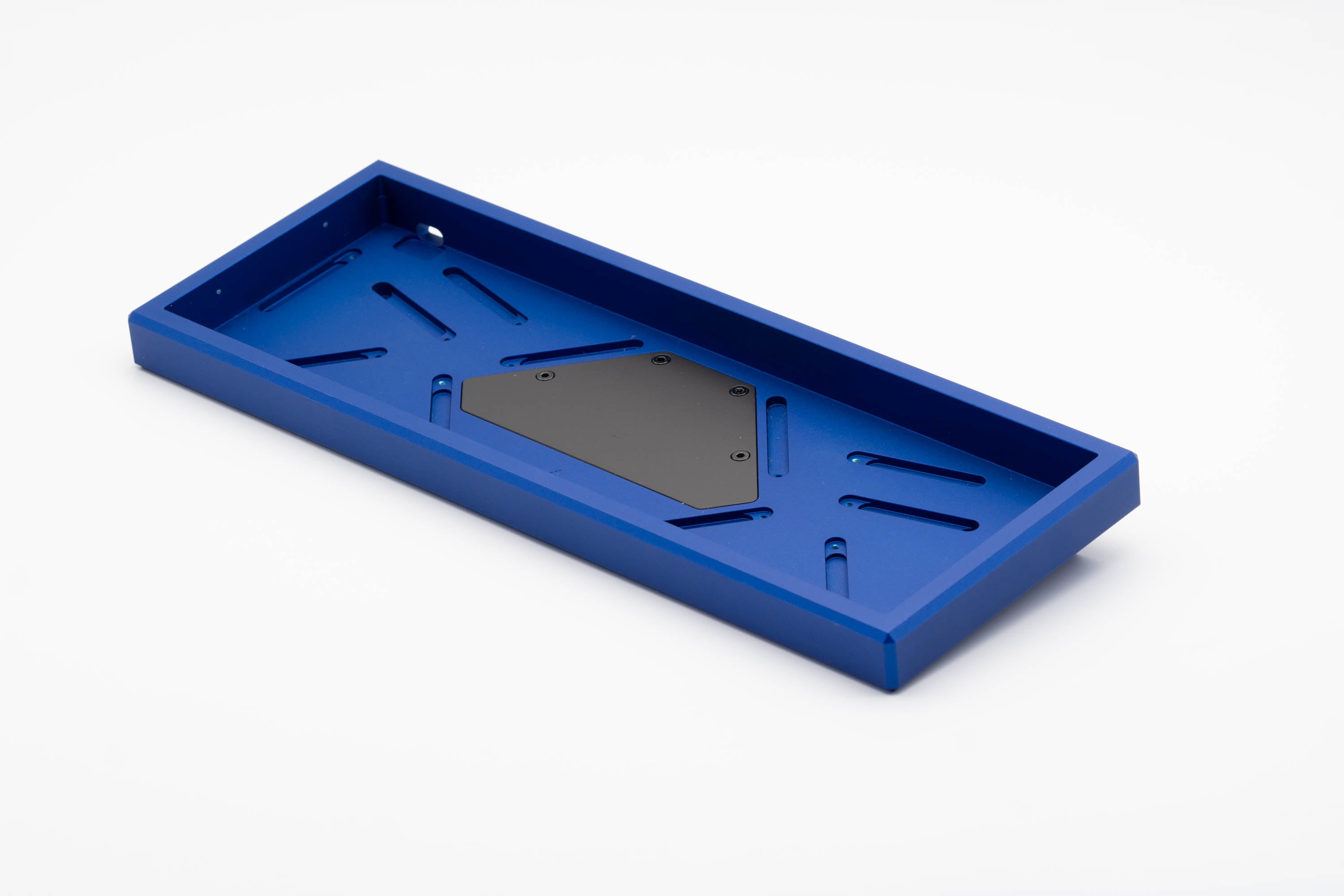

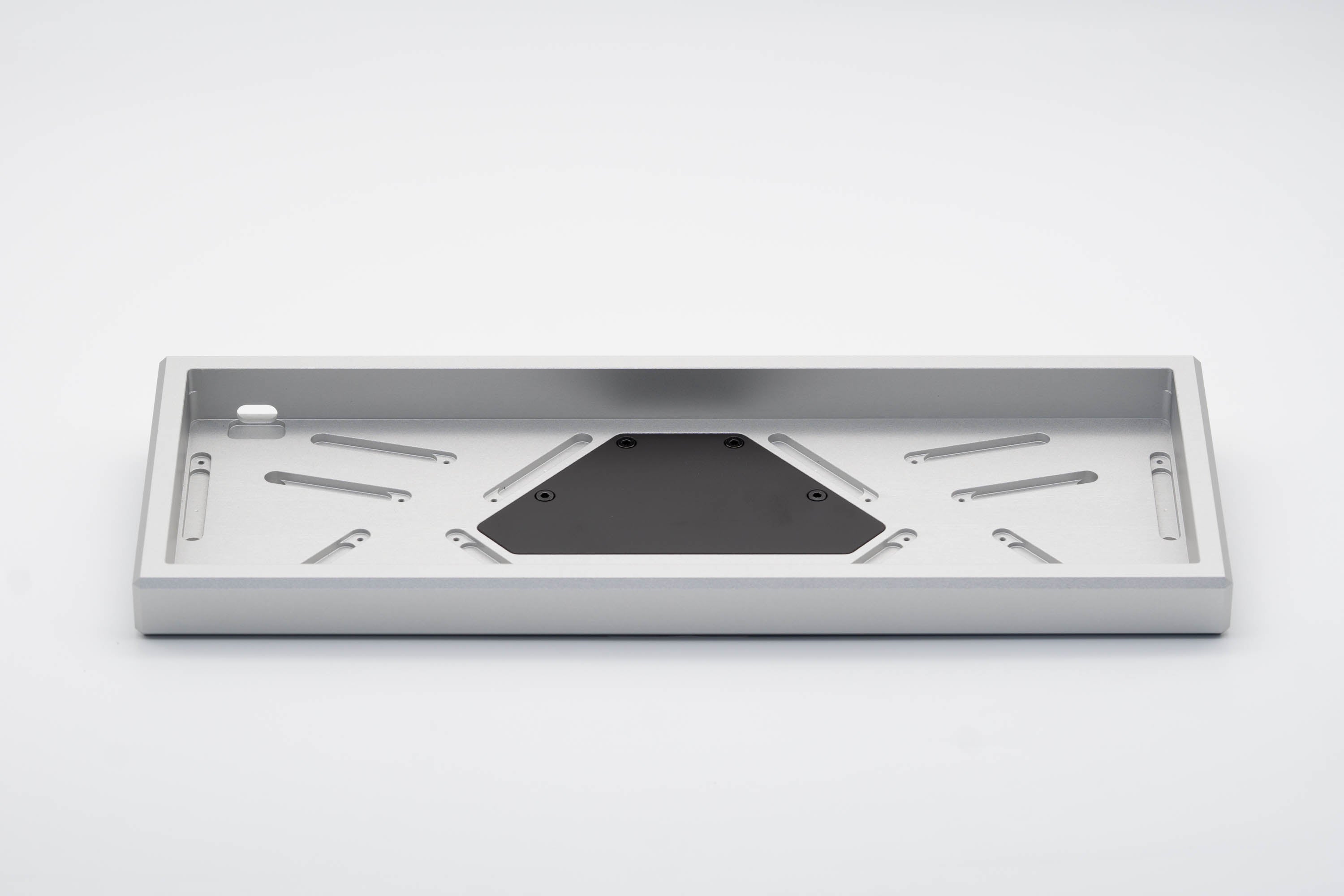

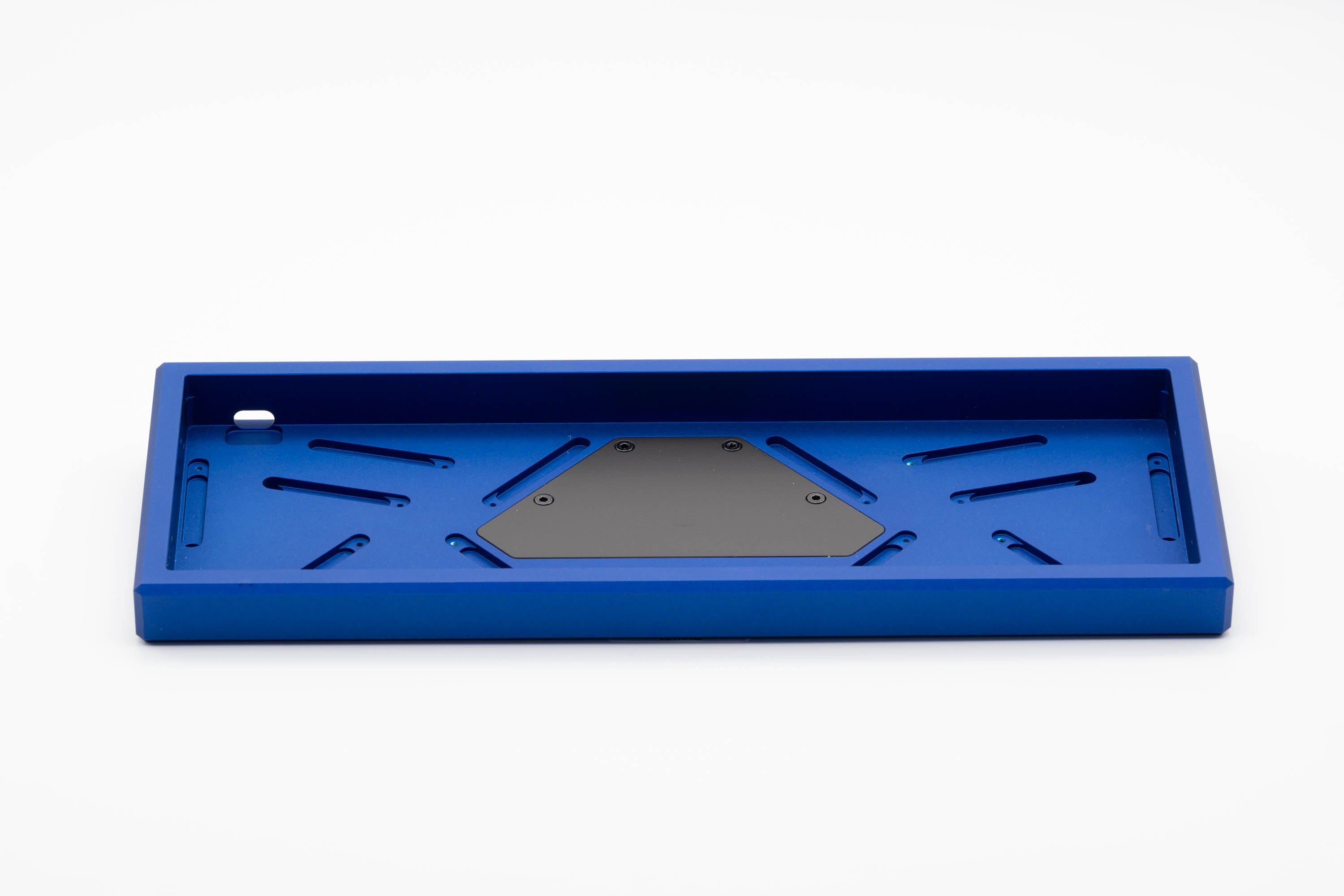

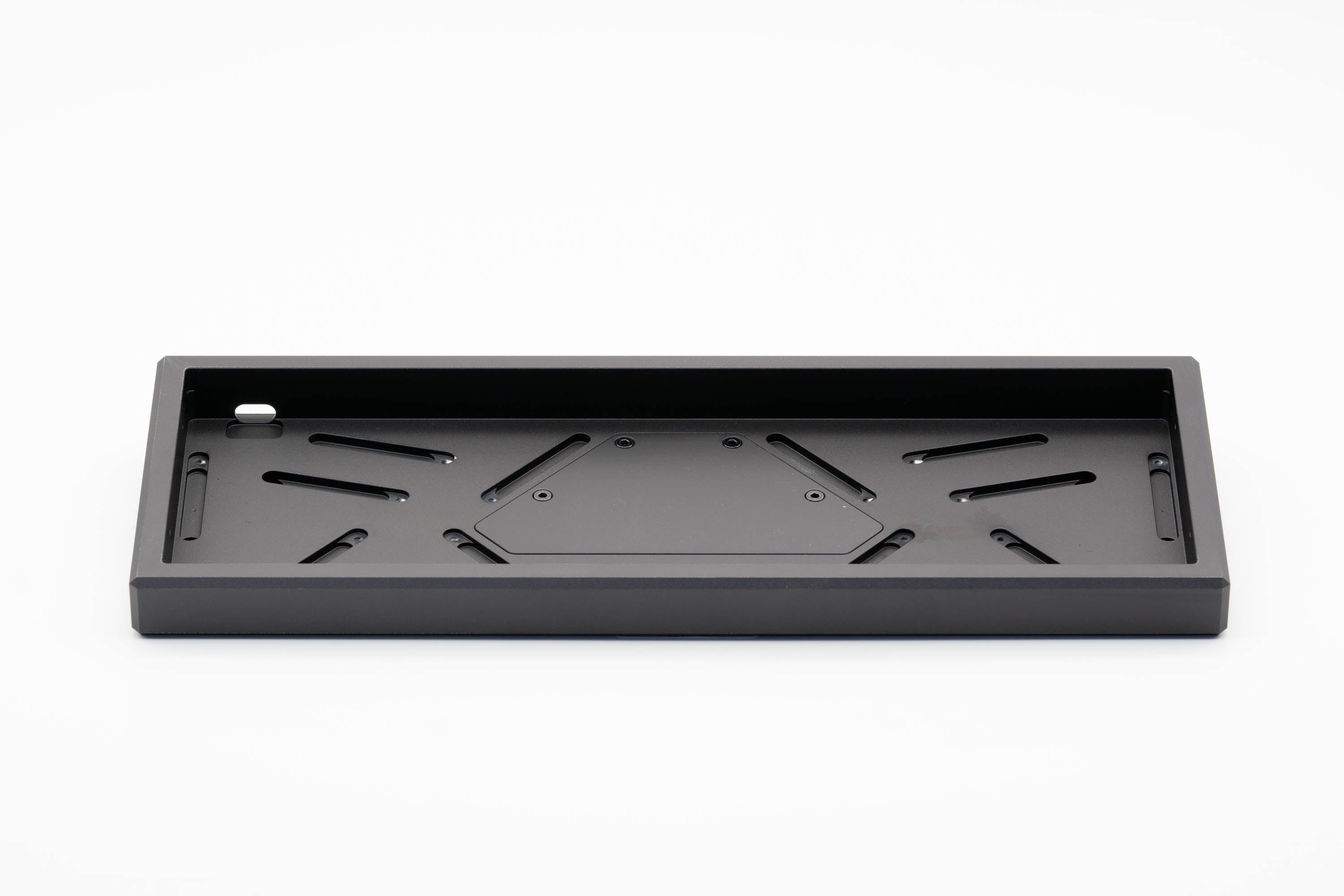

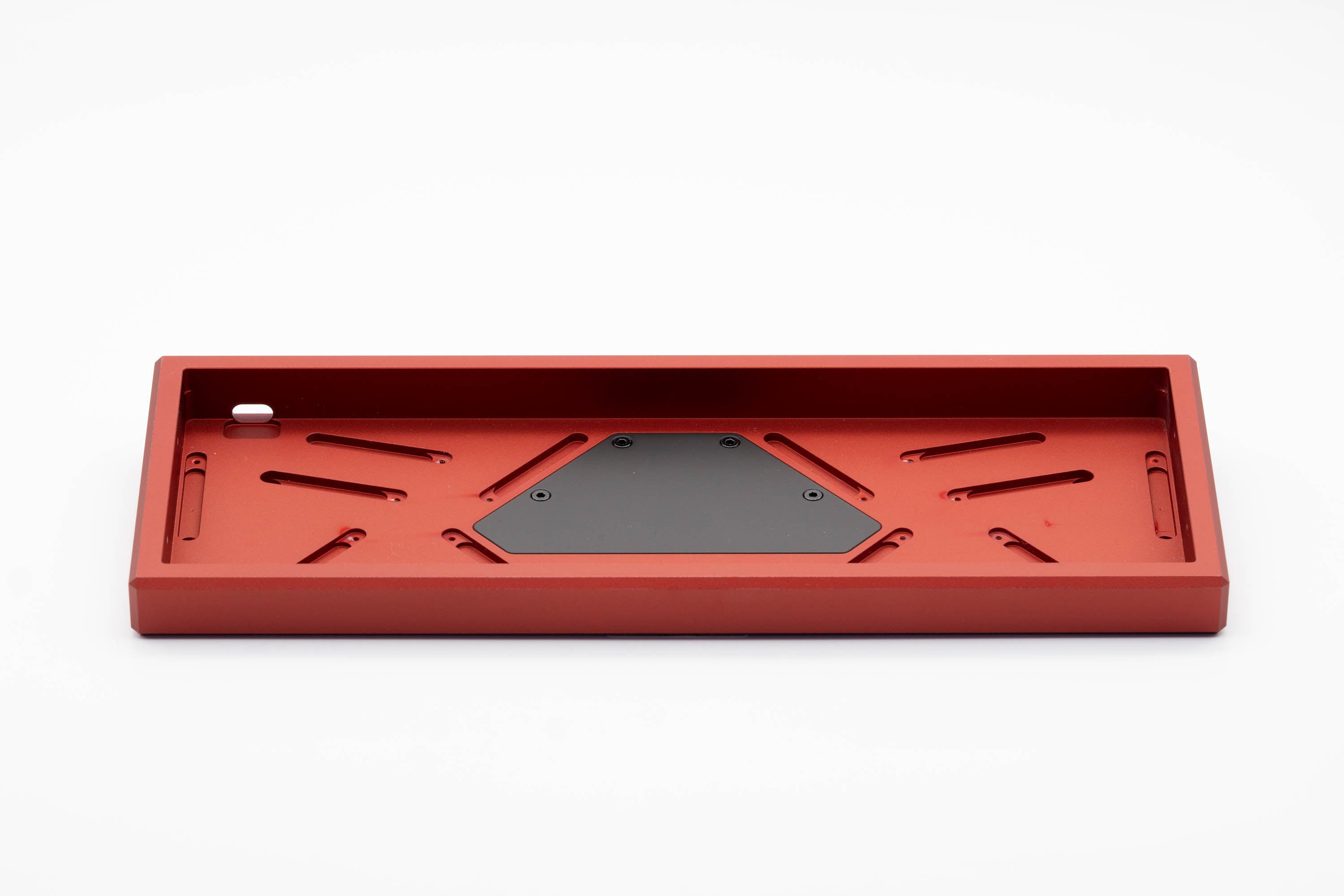

Bead-blasted anodized aluminum case
Bead-blasted cerakoted brass internal weight

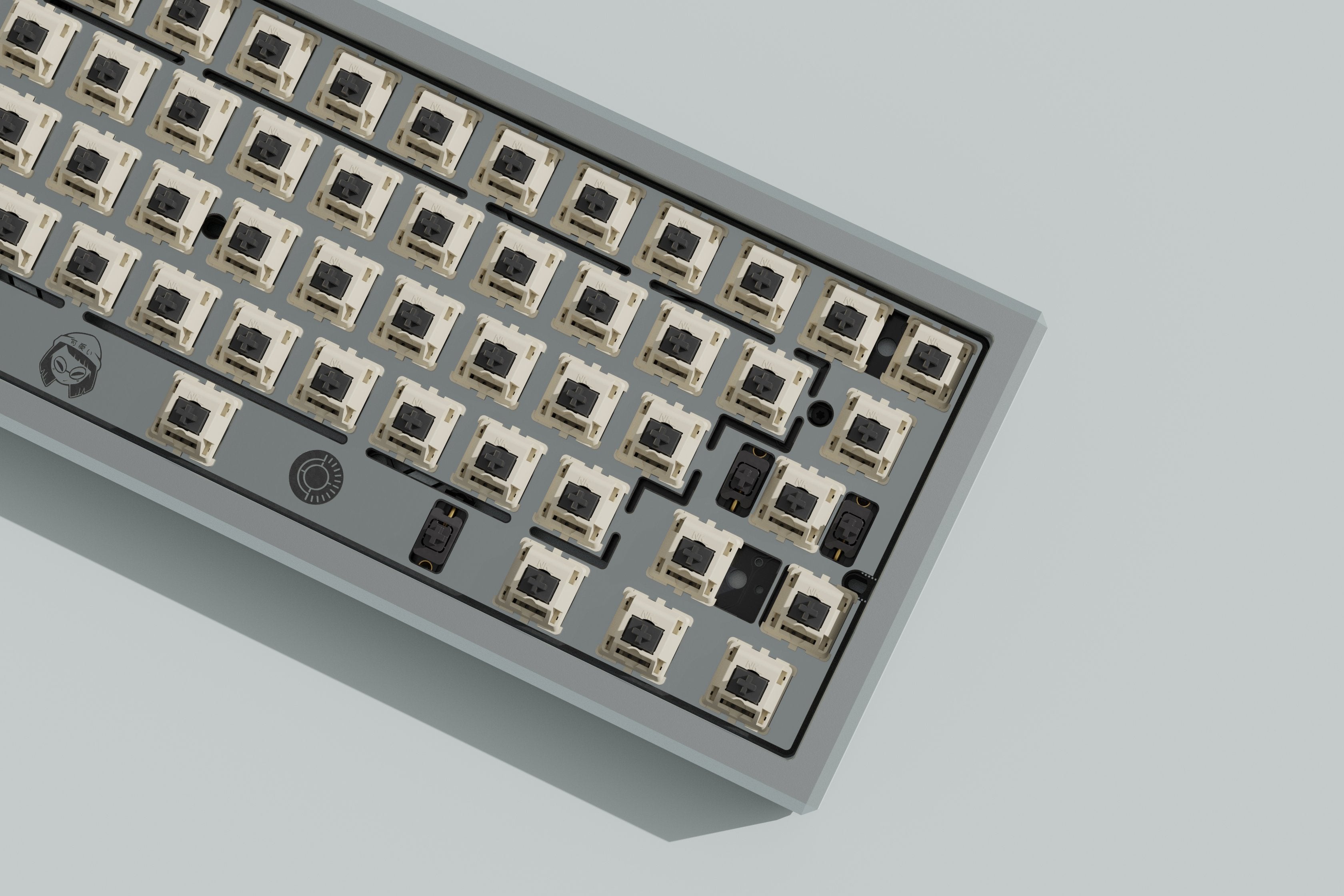

Nickel plated, copper clad FR4 (fibreglass) plate
QMK compatible, fully programmable with VIA configurator
Made in Belgium
PCB Layout Support

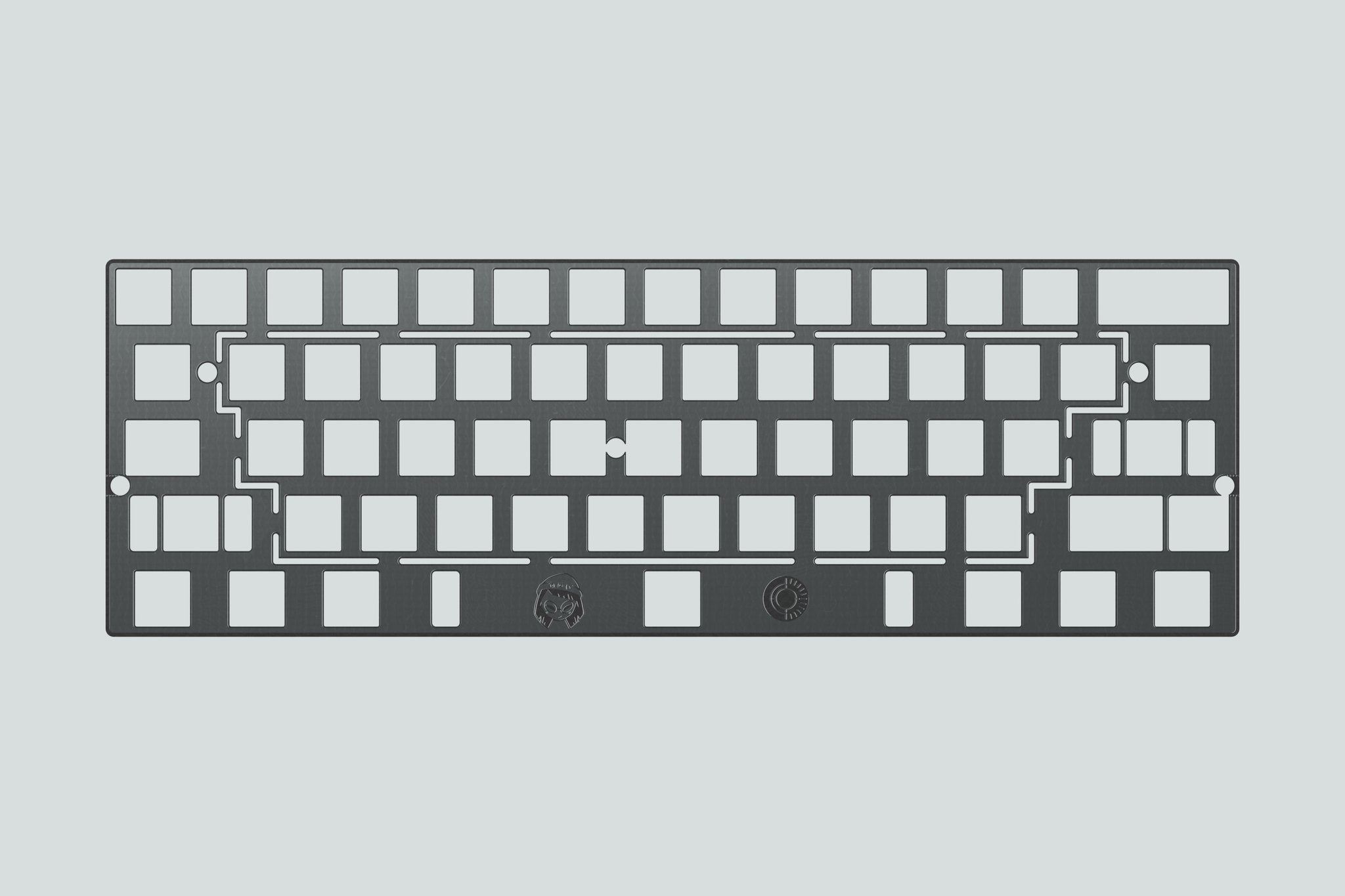

Plate Layout Support

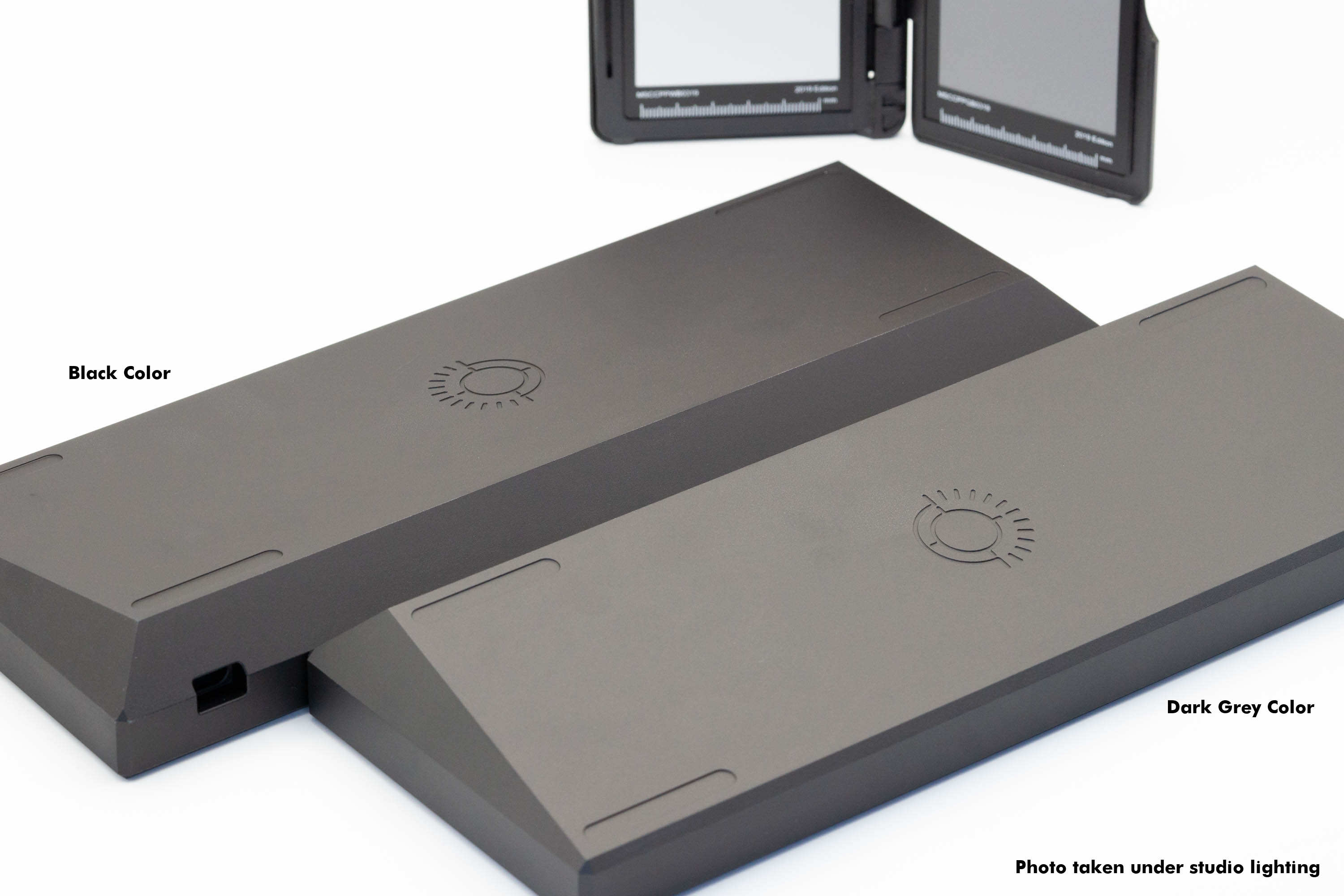

The images shown are for illustration purposes only. The end product may vary in color from the photos as they are not guaranteed to be 100% accurate to the end product.
