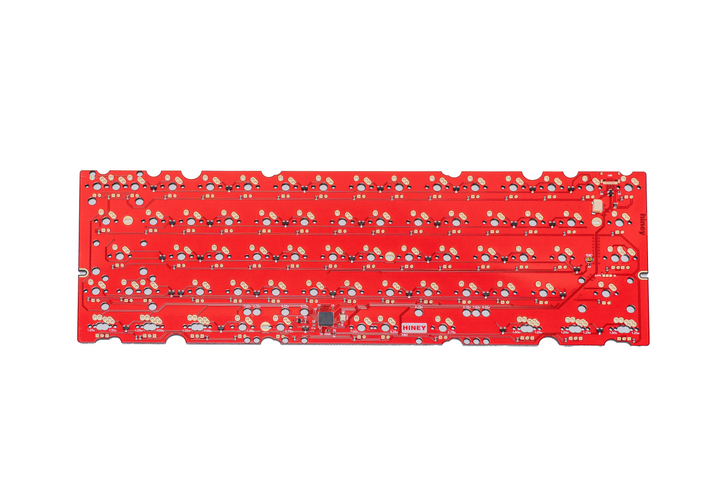

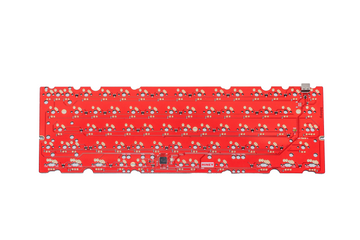

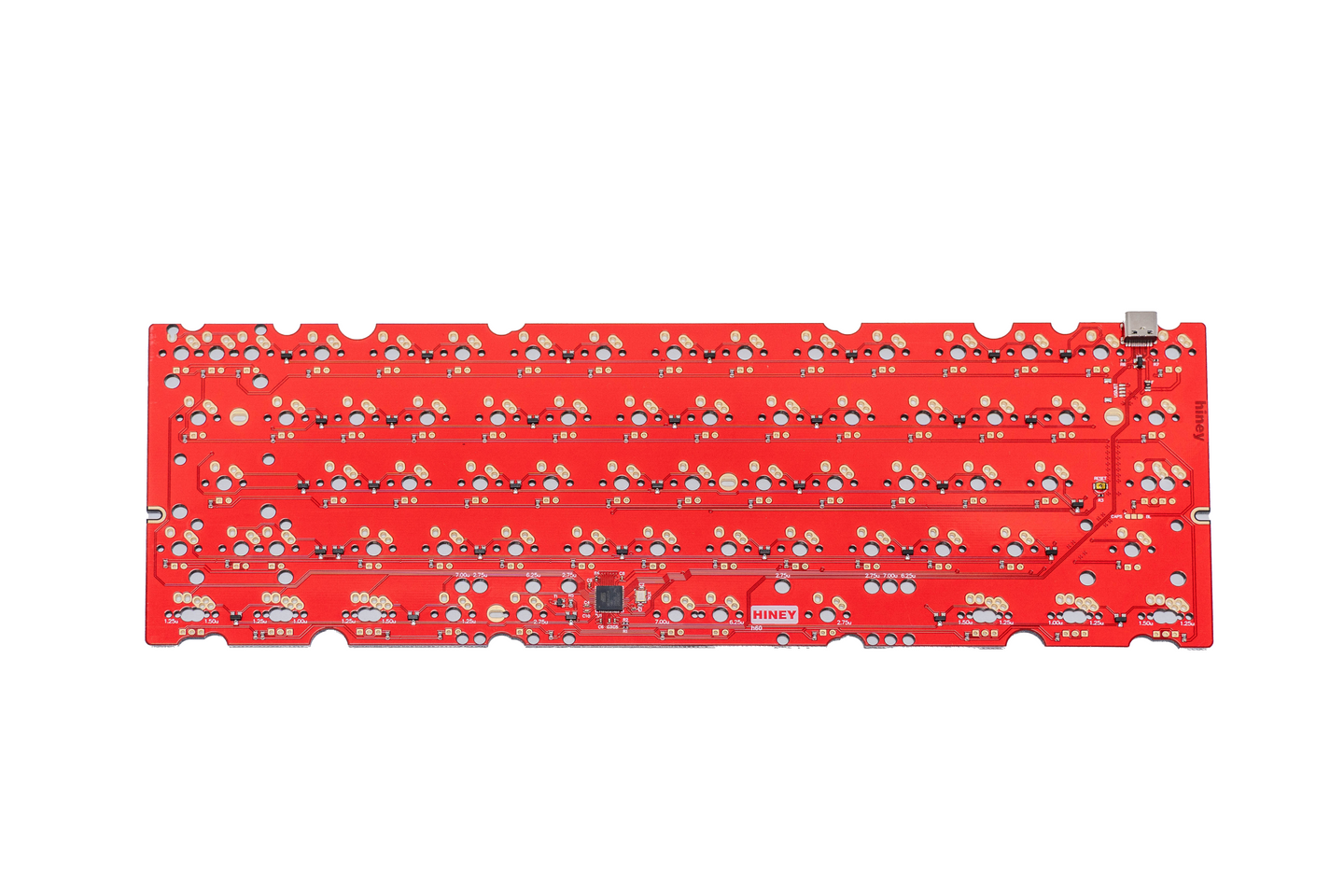

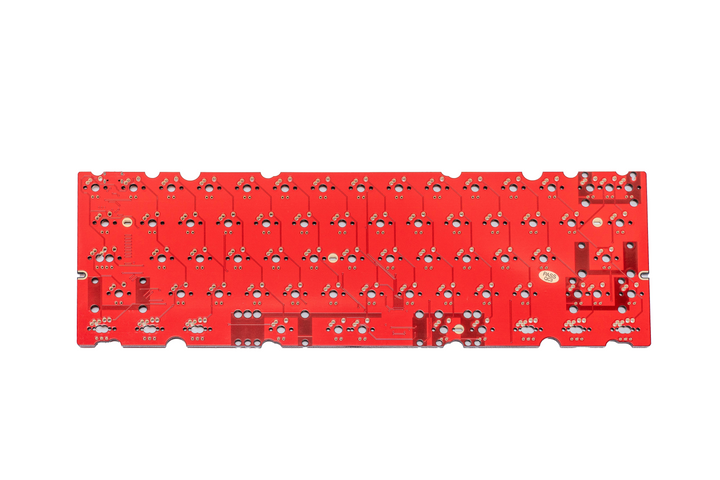

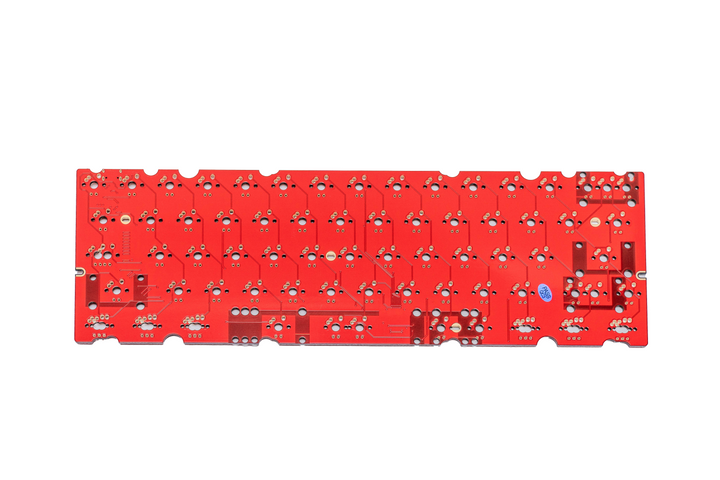

[In Stock] H60 PCB
Regular price
Sale price
SGD$59.00
Shipping calculated at checkout.
Thanks for signing up for restock notifications!
There was an error signing up for restock notifications. Please try again.
This PCB DOES NOT work with the Singa Unikorn. The Unikorn uses a different JST placement. Additional PCBs from this can be ordered from Singa directly.
- 60%, GH60 layout/mounting
- USB Type-C connector
- Two variants:
- USB - USB Type-C. No JST connection. For boards with a USB cutout.
- JST - JST SH 4-pin connector. No USB Type-C. Use only with daughterboards.
- The missing connectors can be soldered onto both versions.
- JST Version only comes with PCB, no daughterboard, you can use ai03's Unified Daughterboard.
- RGB Underglow
- Compatible with QMK and VIA
- Cherry MX and Alps footprints
- Cherry PCB-mount stabilizer support
- Some models have RGB underglow on the bottom side of the PCB.
- This is an ANSI-only PCB, with bottom row support. See the product images for specific layouts!
- Black core FR4 + gloss red solder mask
- Split space: 2.75 + 1.5 + 2.75 (fits 7u spots)
- Nominal thickness is 1.60mm
