[In Stock] Project Affogato Wrist Rest

Product Information

Affogato Wrist Rest is designed by KeepCalm27, in collaboration with iLouis_07.

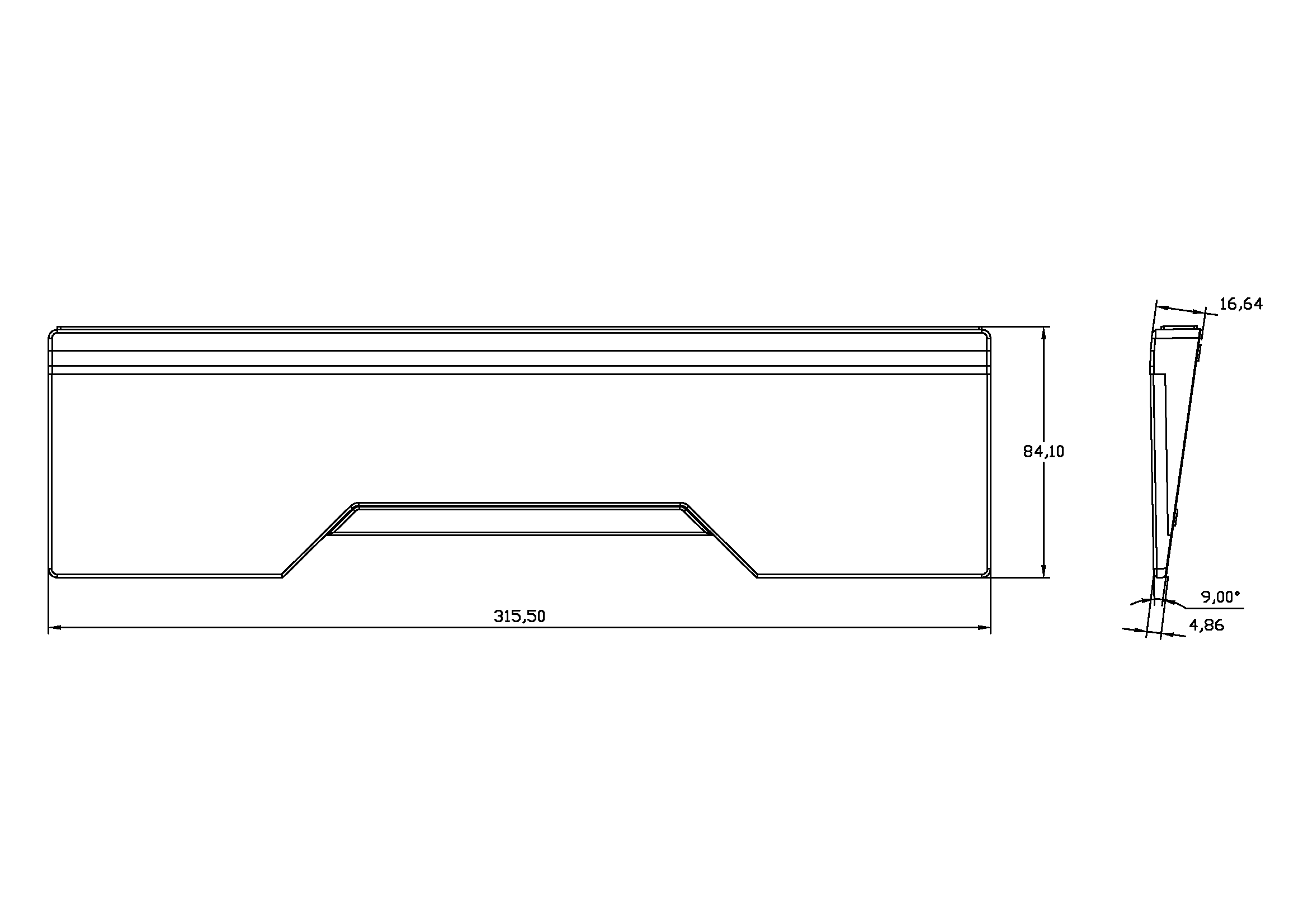

The most important numbers you may need to know:
Front height: 4mm, Rear height 16mm (Lower profile makes typing more comfortable)

Length: 315.5mm, which perfectly matches 65% keyboards, eg: Keycult No.2/65, Aurora Input Series 65, etc.

Width: 85mm

Please note that the wood panel and forged CF panel are in untreated/raw condition, the surface may be rough and you will need to polish it with the provided sandpaper.
The texture of the wood is natural, by purchasing this product you agree on the terms.

What is inside the Wood + CF Panel kit?

• Wood top panel x1
• Forged CF top panel x1
• Alum base x1
• Packaging box x1
• Magnet x 8 (Pre-assembled by iLumkb)
• Rubber food pad x2 (Pre-assembled by iLumkb)
• Protection Rubber/cushion on keyboard front side x1
• Cushion Layer x1 (Pre-assembled by iLumkb)
• Starter Kit x 1

What is inside the CF Panel kit?

• Forged CF top panel x1
• Alum base x1
• Packaging box x1
• Magnet x 8 (Pre-assembled by iLumkb)
• Rubber food pad x2 (Pre-assembled by iLumkb)
• Protection Rubber/cushion on keyboard front side x1
• Cushion Layer x1 (Pre-assembled by iLumkb)

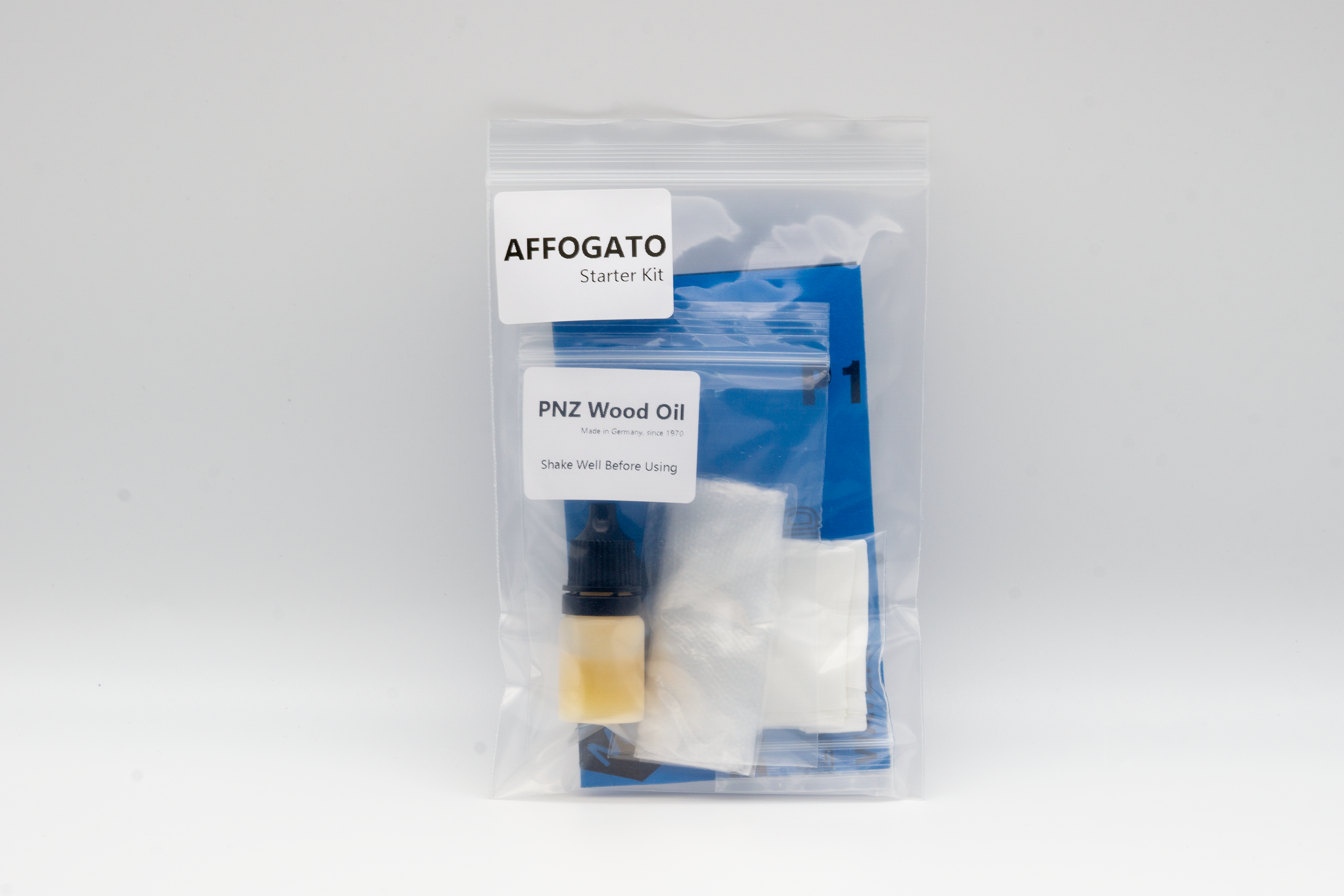

What is inside the Starter kit?

• two pieces of Starcke sandpaper (1000 grit, 1500 grit, Made in Germany)

• one bottle of PNZ hard wax oil for wood (Made in Germany)

• two microfiber wipers,

• two pairs of disposable gloves.

How to apply wood treatment oil on the wood panel

An oil finish is designed to protect the wood and bring out its natural beauty. Oil is penetrating and durable, it is not only water-resistant but also gives the wood an attractive natural sheen and texture.

A hand-rubbed oil finish can be of course beautiful, but it really needs proper treatment. With tung oil or hard wax oil is the oil finish easier to apply. So now we are going to introduce you to the methods to apply wood treatment oil on the wood panel of Project Affogato Wrist Rest.

Step 1: Preparation

Find a starter kit for Project Affogato in the package.

Please work in a well-ventilated area. We strongly recommend that you wear a mask and open windows when handling wood panels, which can protect you from any dust and fumes you may encounter.

Step 2: Cleaning and Sanding

Wood panel to be finished with oil must be thoroughly sanded to even out the open pores to create a smooth surface.

First, use 1000 grit sandpaper in the starter kit to sand the wood panel. Maintain an even force during the whole sanding process and sand along the long side of the wood panel horizontally. Do not use too much force while sanding. Keep sanding until the wood panel gets smooth.

Then use 1500 grit sandpaper in the starter kit to further sand the wood panel. Maintain an even force during the whole sanding process and sand along the long side of the wood panel horizontally. Do not use too much force while sanding. Keep sanding until the wood panel gets smooth.

After sanding, clean up the dust on the panel and make sure the surface is smooth and even.

Step 3: Oil Application

Drop some hard wax oil on a dry microfiber wiper, this will allow the oil to be absorbed into the wiper without applying too much.

Rub the microfiber wiper along the grain of the wood to work in the polish. You can continue to apply more layers depending on how dry the wood panel is. Make sure to get in all crevices and corners. Continue rubbing for about 5-15 minutes, as you rub, the warmth you generate will help the oil penetrate the wood. And make sure it will not begin pooling on the wood panel, which means too much oil is applied. If you apply too much oil to the wood panel, you can use another dry microfiber wiper to absorb the excess oil.

Step 4: Drying and Recoating

Hard wax oil dry quite quickly, in most cases, it can be reapplied after 12 to 24 hours. Drying may take longer in very humid weather.

When the first coat of oil is completely dry, apply further coats until the finish is rich and hard. Normally hard wax oil sealers may require only one additional application. Rub each additional coat of oil thoroughly into the wood, as in Step 3 above, and do not forget to wipe off all excess oil. Let each coat of oil dry thoroughly before applying the next layer.

After applying all coats of oil and completely drying, the wood panel for Project Affogato is good to go!
