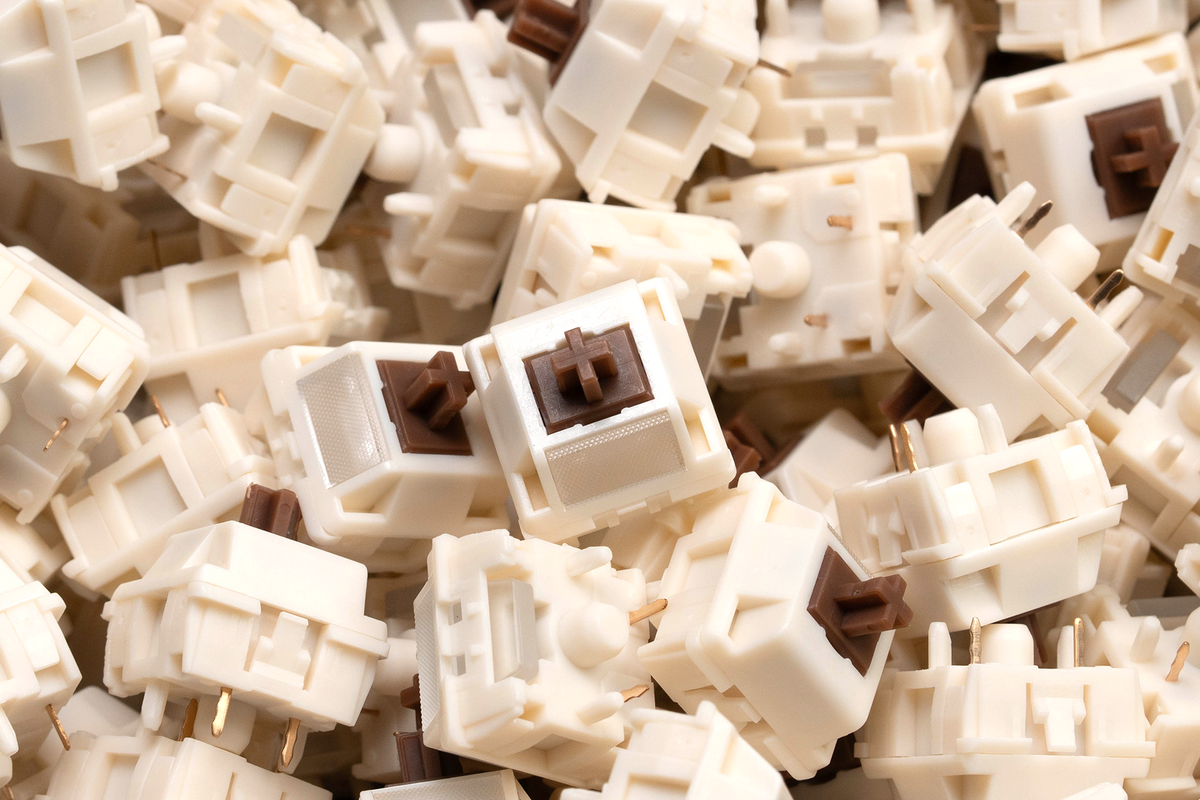

HMX 3rd Generation Mold, Caramel Pudding V2 Switch Review

A Balanced Mid-Frequency Linear with a Deeper, Thockier Profile

This iteration features a completely new HMX mold, an updated factory lubrication method (closer to hand-lubed results), and custom-tuned materials.

Caramel Pudding V2 is designed as a mid-frequency, muted linear switch — aiming to achieve a deeper, more satisfying sound profile without sacrificing too much typing feel.

Purchase Link: here

New HMX Mold (3rd Generation in 2026)

The HMX third-generation mold introduces a redesigned stem structure that combines the strengths of previous generations.

• Gen 1st:
  Featured a filled stem design, offering more focused and concentrated sound.
• Gen 2nd:
  Switched to a structural stem design, improving injection stability, reducing deformation, and delivering better typing feel.
• Gen 3rd (Latest):
  Combines both approaches into a semi-filled structural design, achieving a more balanced result between sound and feel.

Stem Bottom Design

The stem bottom-out surface adopts a flat grid pattern:

• Compared to a traditional flat surface, the grid contact produces a deeper, more muted sound
• Enhances the “thock” character without increasing harshness
• Maintains a clear and solid bottom-out feedback, ensuring good typing confirmation

Material Tuning

To preserve a satisfying bottom-out feel, we avoided overly soft materials.

Instead, the stem uses a custom H1 blend:

• Maintains sufficient firmness
• Adds a touch of elasticity
• Results in a balanced feel — neither too soft nor too rigid

---

Updated Factory Lubrication

We refined the lubrication process to better replicate hand-lubed consistency:

1. Custom Lubricant Blend

A tuned mix of DuPont 104 + 205

• Lower fluidity → prevents over-spreading
• Higher adhesion → more consistent performance
• Improved long-term stability

2. More Precise Lubing Points

• Additional targeted lubrication points
• More even distribution
• Closer to a true hand-lubed experience

Switch Specifications:

• Switch type:Linear Switch
• Number of pins: 5 pins
• Actuation Force: 42g
• Bottom out Force: 52g
• Actuation Travel: 2.0±0.2 mm
• Bottom-out Travel: 3.7±0.2 mm

• Top Housing Material: PA12
• Stem Material: H1
• Bottom Housing Material: P4
• Spring Version: 22mm Single-stage KOS precision spring
• Factory lubrication:Yes
• Manufacturer: HMX
