[Group Buy] ZOOM64 Mystic Ink

Shipping calculated at checkout.

🛒 Group Buy is Live

PCB Type: Tri-mode Flex Cut RGB PCB

Tri-mode Flex Cut RGB PCB Tri-mode Non-Flex Cut RGB PCB

Plate Material: PC

PC POM FR4 Alu

Dampening Foam Kit: Standard

Standard Cork Poron

Quantity:

SGD$189.00 SGD

[Group Buy] ZOOM64 Mystic Ink

SGD$189.00 SGD

Zoom64 Hunyuan(混元) - The Hybrid Origin.

A 64% Barebone and A GH60 Compatible Case Kit for 2026

Hunyuan embodies the beginning of design diversity and limitless compatibility — where all elements converge to create a new standard.

Case & Build

Material: 6063 Aluminum / Acrylic

Color & Finish: Anodized / Acustatic/ Injection Molding

Typing Angle: 6.5°

Front / Rear Height: 17.8mm / 32.2mm

Dimensions: 297.1 x 122.1 x 36 mm

Mounting Structure: Silica Gel Particle Mounting + O-ring

Package Weight: 2.4 kg

PCB & Performance

Hot-Swap: Yes

N-Key Rollover: Yes

Programmability: VIA Compatible

RGB: Yes, South-Facing LEDs

Wireless: Tri-Mode (USB / BLE 5.4 / 2.4GHz)

Wired Polling Rate: 1000Hz

BLE Polling Rate: 133Hz

Latency: ≈0.6ms (Wired) / ≈1.1ms (2.4G) / ≈8ms (BLE)

System Support & Misc

Compatibility: Windows, macOS, Linux, Android

Simultaneous Connections: Up to 5 devices

Driver: Independent Software

Layout: 64-key

Included Accessories

Stabilizers: Stabilizers (3x 2U stabilizers + 1x 6.25U stabilizer)

Cable: USB Type-C (Length to be confirmed)

User Manual: Included

Package Includes:

1. Tri-mode 1.2mm Flex-cut PCB(optional)

2. Dampening Foam Kit(optional)

3. Plate(optional)

4.USB cable

5.2.4G Receiver

6.Stabilizers

7.Screwdriver

8.Extra Cables

9.O-Ring Mount

10.Silica Gel Mount

11.Warranty Card

12.Operation Manual

ZOOM64 Aluminum Version Quality Disclaimer

File ZOOM64 Aluminum Version Quality Disclaimer

Crafting Perfection: Our Acrylic Case, Coming Soon

The Injection-Molded Acrylic Case

Our journey to craft a premium-feeling acrylic case began in 2024. By choosing injection molding over the costlier and slower CNC method, we focused on achieving outstanding texture and consistency through precision tooling. After nearly a year of development, our custom molds were completed in late November 2024, which allows us to offer this high-quality case at a starting price of $79.

Available in four distinctive finishes:

Crystal Voyage / Shadow Black / Mojito Green / Aurora Nebula

The Precision Process Behind Our Acrylic Case

Each case follows a complete manufacturing journey: mold design → mold making → injection molding → post-processing.

With the mold challenge solved in November, we’re now refining the final stages:

1. Tapping & Reinforcement: To prevent cracking, we’re testing specialized tapping methods and screw inserts to eliminate visible whitening around screw holes.

2. Surface Finishing: We’re committed to a perfect matte texture and even coloring. After testing 6 different suppliers for sandblasting and coloring without satisfactory results, we have just rejected the latest sample and are now engaging a new supplier.

Group Buy Timeline & Pricing

The acrylic group buy will not launch on February 3rd. To ensure everyone receives a perfected product, we will complete all post-processing refinements and approve a final sample before the Chinese New Year, then open the group buy.

Expected Launch: Late February or early March 2026.

Pricing & Delivery: Prices will remain as announced (starting at $79). Raw materials have been ordered in advance, and if all goes smoothly, we expect to begin deliveries in April. Please stay tuned for further updates.

A Note on Metal Cases

If you also love the metal version, we recommend purchasing it sooner rather than later.

We have already ordered 3,000 metal cases, with limited quantities per color. CNC production is underway, with domestic orders shipping before CNY, the group buy closing shortly after, and international shipments starting in March. To secure your preferred color, we suggest ordering early.

Material: 6063 Aluminum / Acrylic

Color & Finish: Anodized / Acustatic/ Injection Molding

Typing Angle: 6.5°

Front / Rear Height: 17.8mm / 32.2mm

Dimensions: 297.1 x 122.1 x 36 mm

Mounting Structure: Silica Gel Particle Mounting + O-ring

Package Weight: 2.4 kg

The Injection-Molded Acrylic Case

Available in four distinctive finishes:

Crystal Voyage / Shadow Black / Mojito Green / Aurora Nebula

The Precision Process Behind Our Acrylic Case

Each case follows a complete manufacturing journey: mold design → mold making → injection molding → post-processing.

With the mold challenge solved in November, we’re now refining the final stages:

1. Tapping & Reinforcement: To prevent cracking, we’re testing specialized tapping methods and screw inserts to eliminate visible whitening around screw holes.

Group Buy Timeline & Pricing

Expected Launch: Late February or early March 2026.

A Note on Metal Cases

If you also love the metal version, we recommend purchasing it sooner rather than later.

All-Aspect, Seamless Grand Curve

The lower case is a single, wraparound curve, erasing all superfluous edges. Like a river stone polished by time, it cradles the interior in a complete embrace.

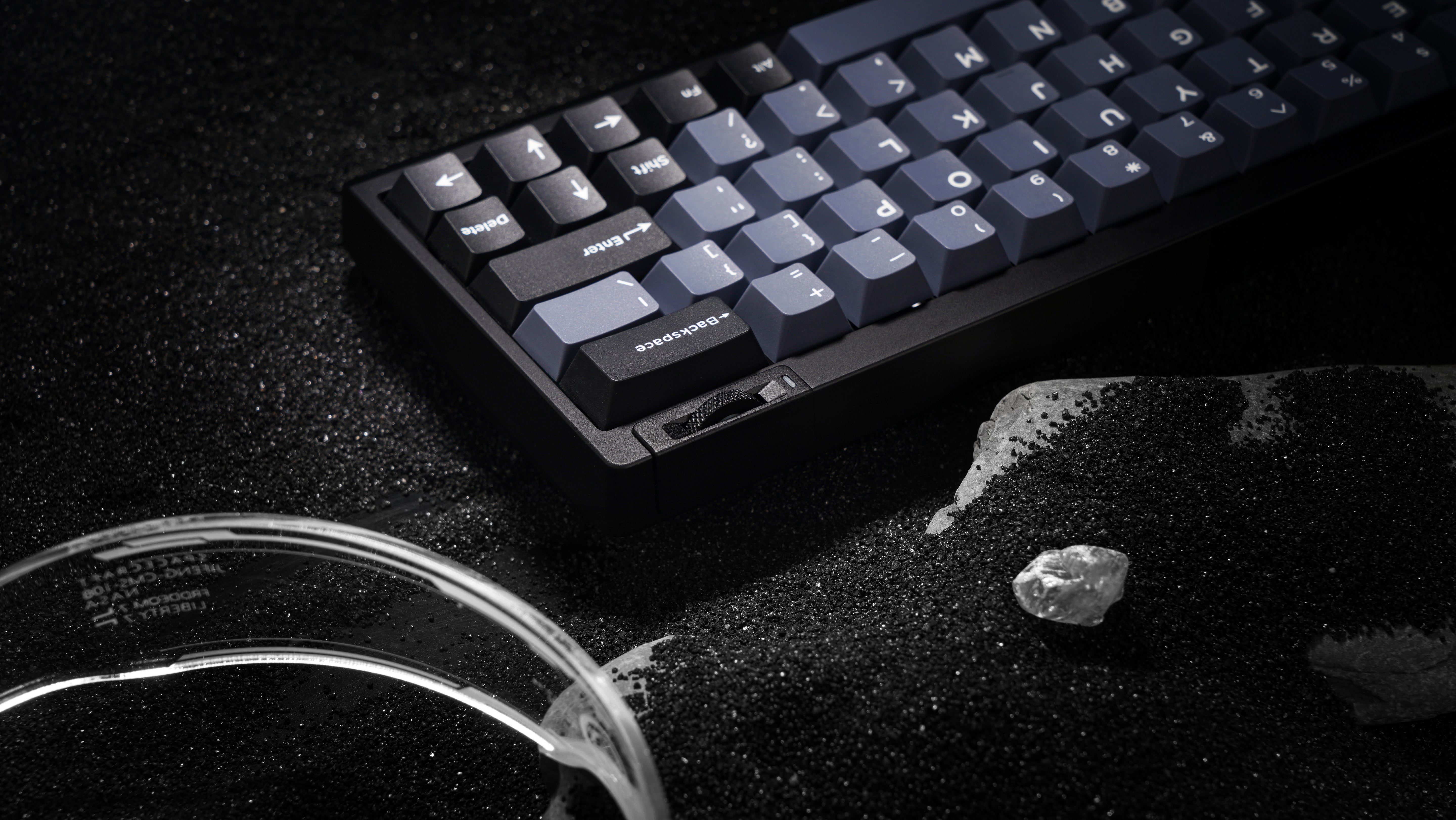

Recessed Metal Knurled Knob

Offers superb tactile feedback and precise control, seamlessly integrated into the compact 64-key layout without compromising its clean aesthetic. Programmable via VIA, it transforms into a volume dial, scroll wheel, or any macro tool you define.

Aurora Arc Side Profile

The side concave is inspired by the “aurora arc,” balancing visual focus and depth.

Functional Weight

The “racetrack” curved weight with wave texture provides a secure grip when moving the keyboard. Twin-eared feet appear to listen to each keystroke, visually merging with the grand curve.

Light, born from within the case

A seamless 360° bottom light strip is artfully concealed within the silhouette’s transitions. When lit, the light appears to emanate organically from within, softly revealing the product’s complete silhouette.

Artistic Silicone Feet

Moving beyond purely functional bumpers, these feet are sculpted into twin-ear shapes. They echo the case's macro-curves, creating a cohesive visual flow while offering stable support—as if gently leaning in to listen to every keystroke.

Structure · Hybrid Damping System

O-RING or Silica Gel Particle Mounting options support “foamless” tuning, effectively eliminating case ping.

Your kit includes both mounting systems. Choose your mount: Silicone Gel (recommended) or O-Ring (soft feel). For magnetic switches, use Silicone Gel only. For no-foam configurations, we exclusively recommend the Silicone Gel structure to maintain proper internal stability and sound profile.

Premium Acoustic Experience

Poron Foam

Poron foam offers excellent durability and fatigue resistance, ensuring consistent sound performance over time. With a muted sound profile, it makes it the perfect option for office use.

Cork Foam

This cork layer delivers a crisper sound, providing a distinctive typing experience unlike anything else on the market.

Classic Foam

Classic Foam evolves in character over time, beginning with a bright tone that gradually mellows with use.

Plate : 7 Material Options

PCB Options

Tri-mode Flex Cut Hotswap RGB PCB(1.2mm)

Tri-mode Non-Flex Cut Hotswap RGB PCB(1.6mm)

60% Form, Uncompromised Layout

ZOOM64 is not just a case, but a compatible platform for multiple classic layouts.

Supports: Split Backspace | ANSI/ISO Enter | Stepped CapsLock | Split Left Shift

Please note: The ZOOM64 features a standard 2U Shift key, compatible with most keycap sets. When purchasing, simply verify that your set includes this size for a perfect match.

Low Front-Height Sloped Design

Ergonomically angled design to alleviate wrist pressure.
