Internal marks are not considered. Screw holes are considered as an internal side.
Brass is a natural material and may have tiny dots if observed at a close distance.
The recommended viewing distance for judging the product is around 50cm under regular lighting conditions with the keyboard sitting on a desk.
Marks can be seen under harsh light or centain angles of view are not considered.
Typing angle: 6.4°
Case Material: 6063 Aluminum, Brass, Stainless Steel
Mounting system: Gummy-Worm (70a o-ring default) gasket, Top Mount with relief cuts

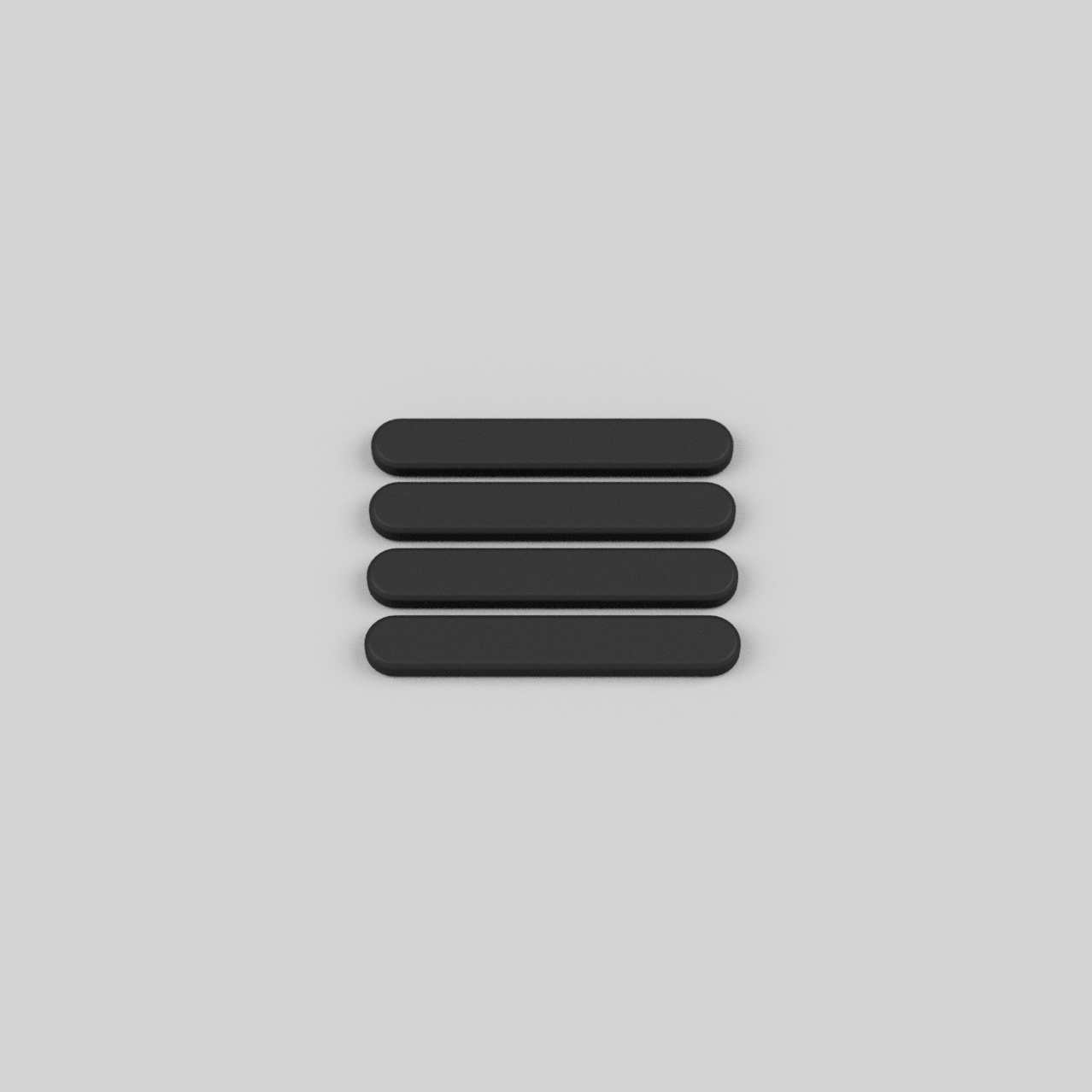

Front height: 17.9mm (without feet)

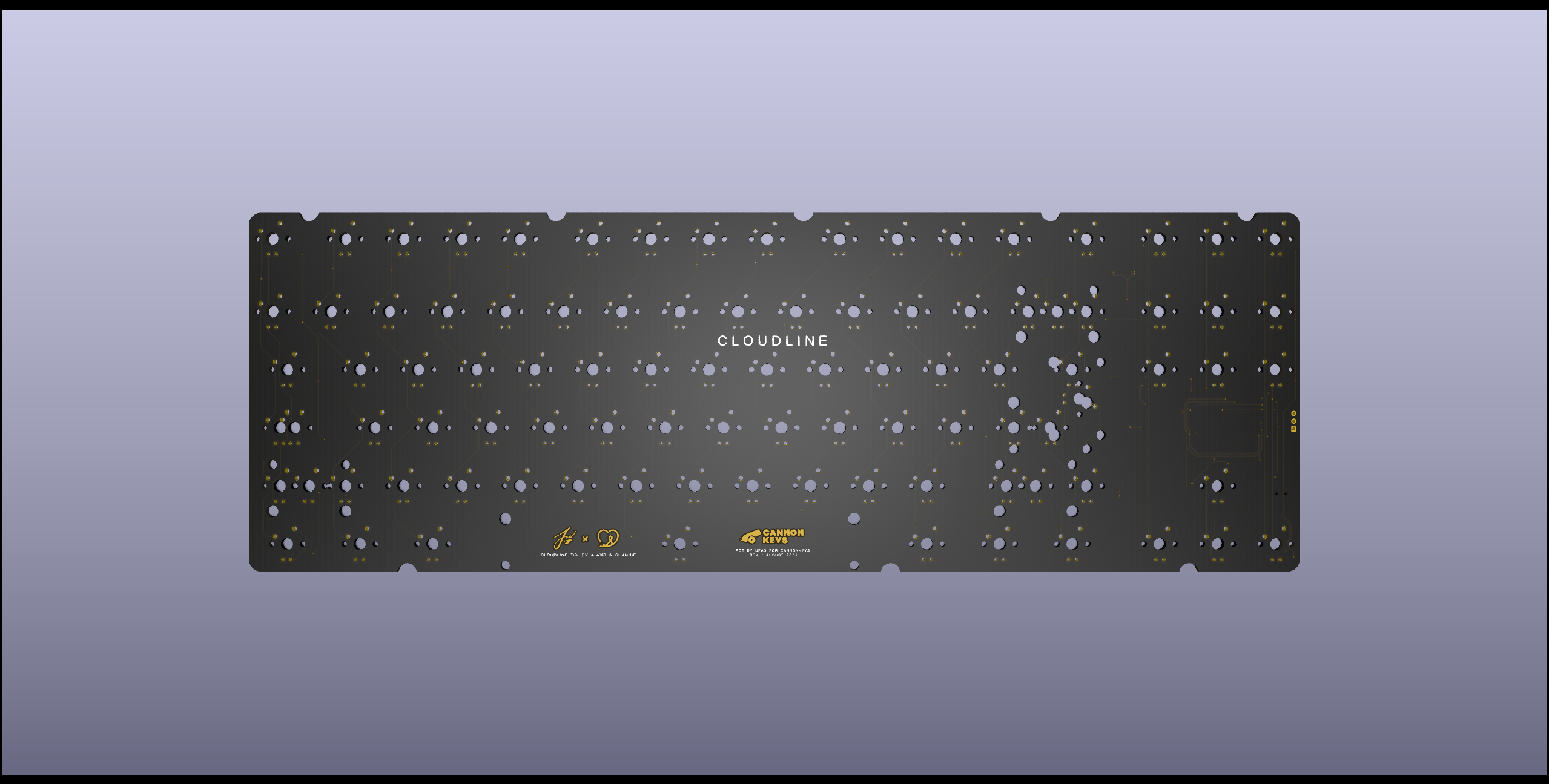

PCB: Designed by Upas. Paired with the ai03 unified daughterboard. QMK & VIA compatible PCB. Solder only.

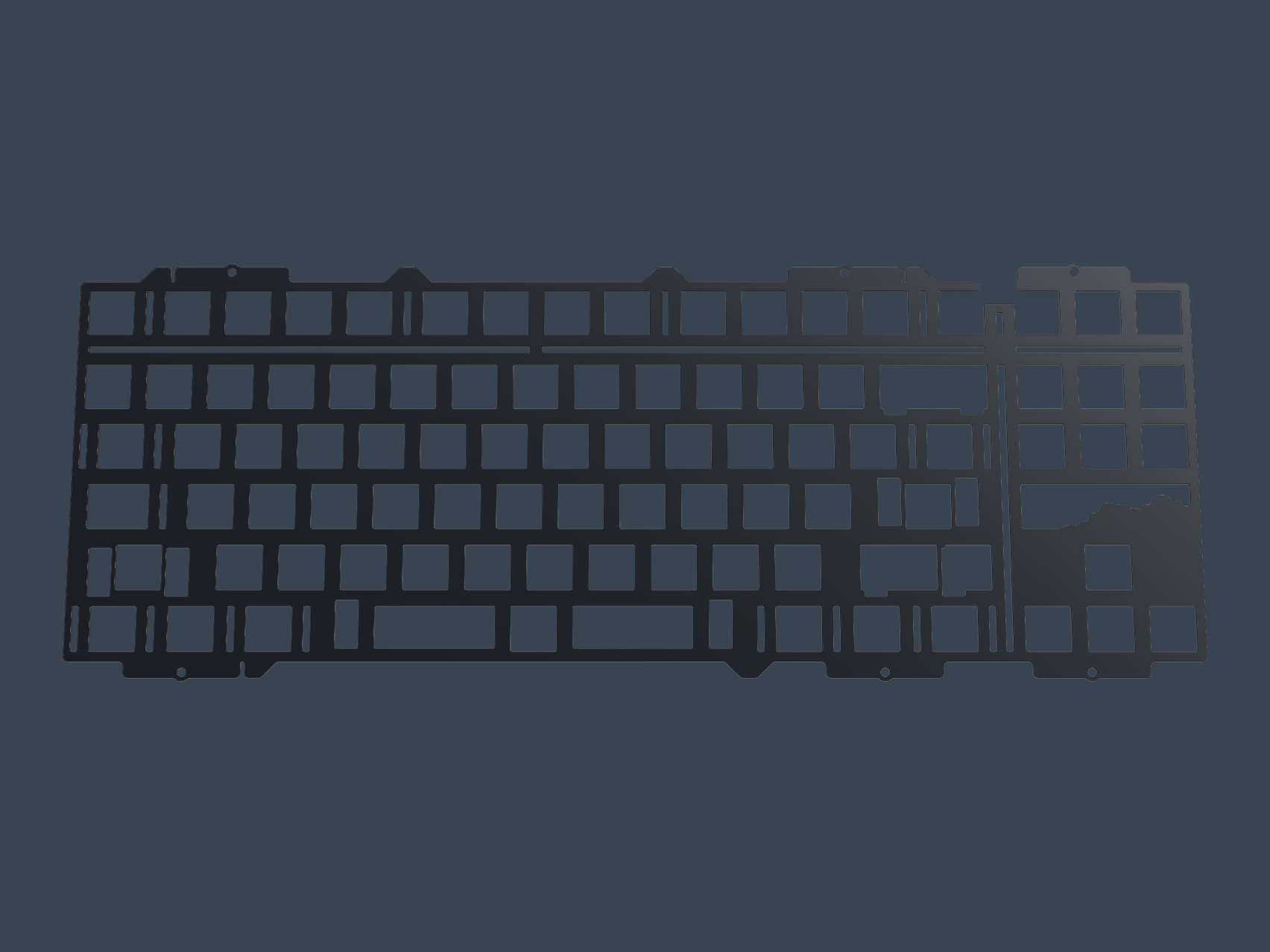

Plates: Aluminum full standard

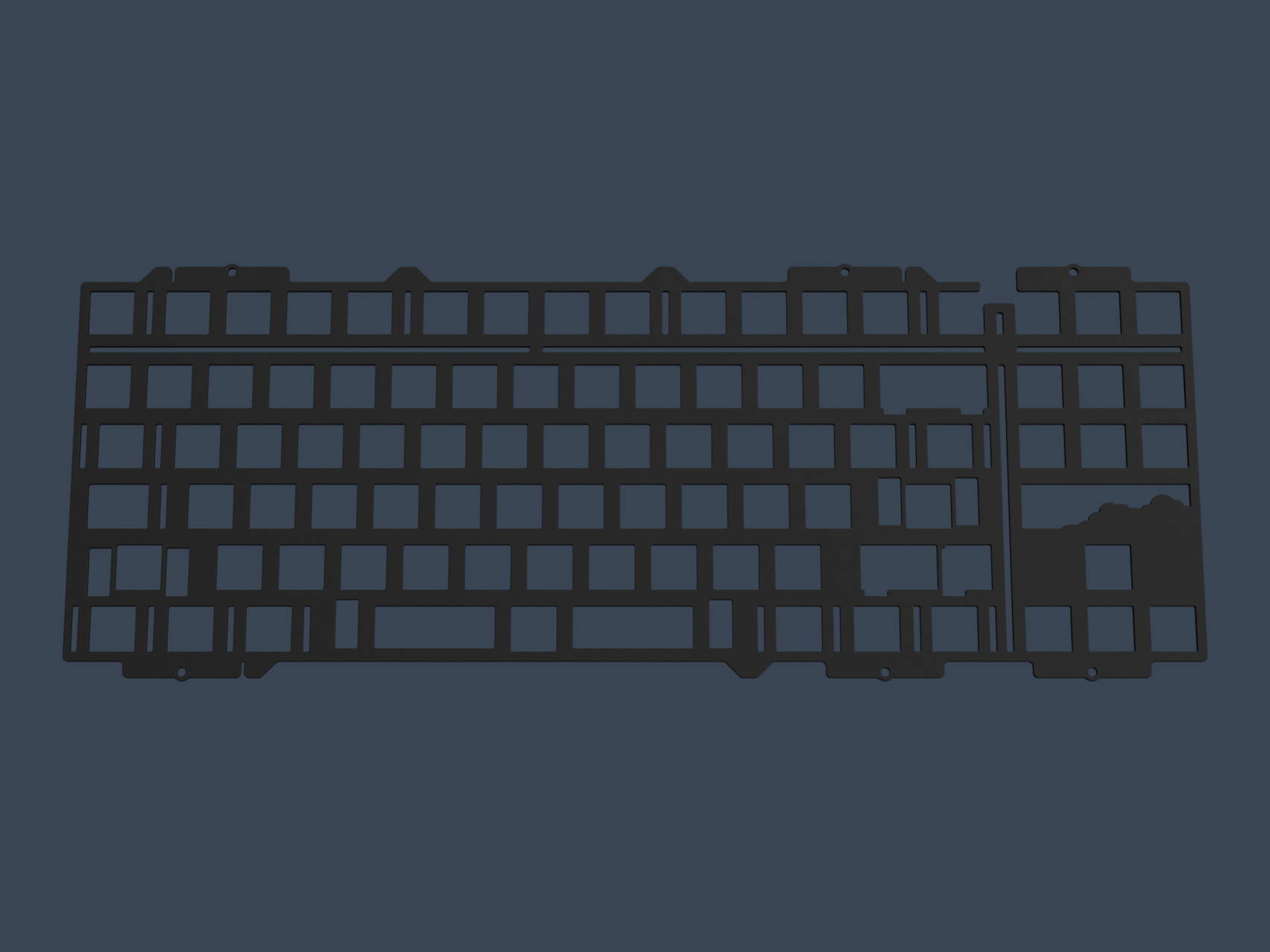

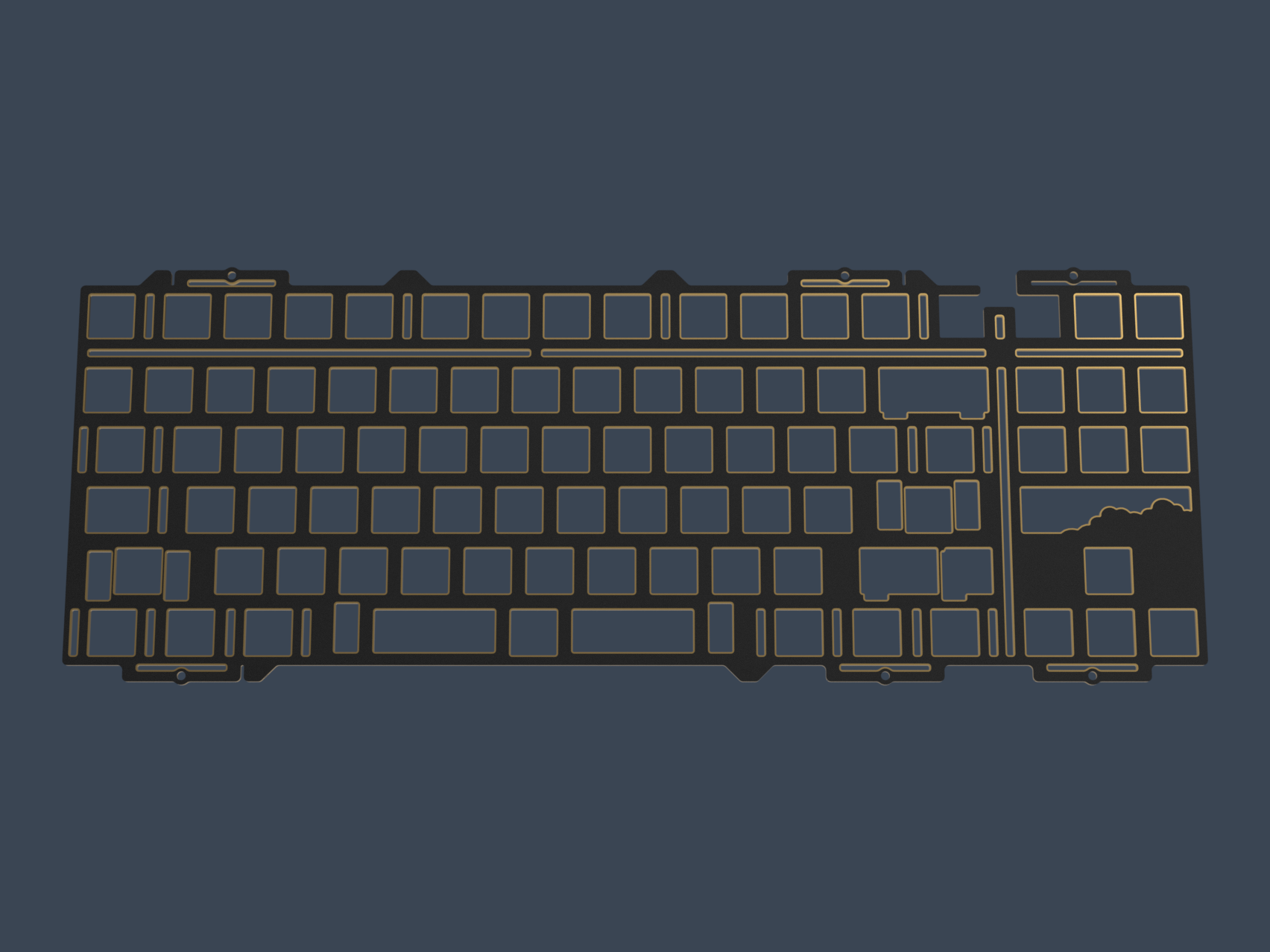

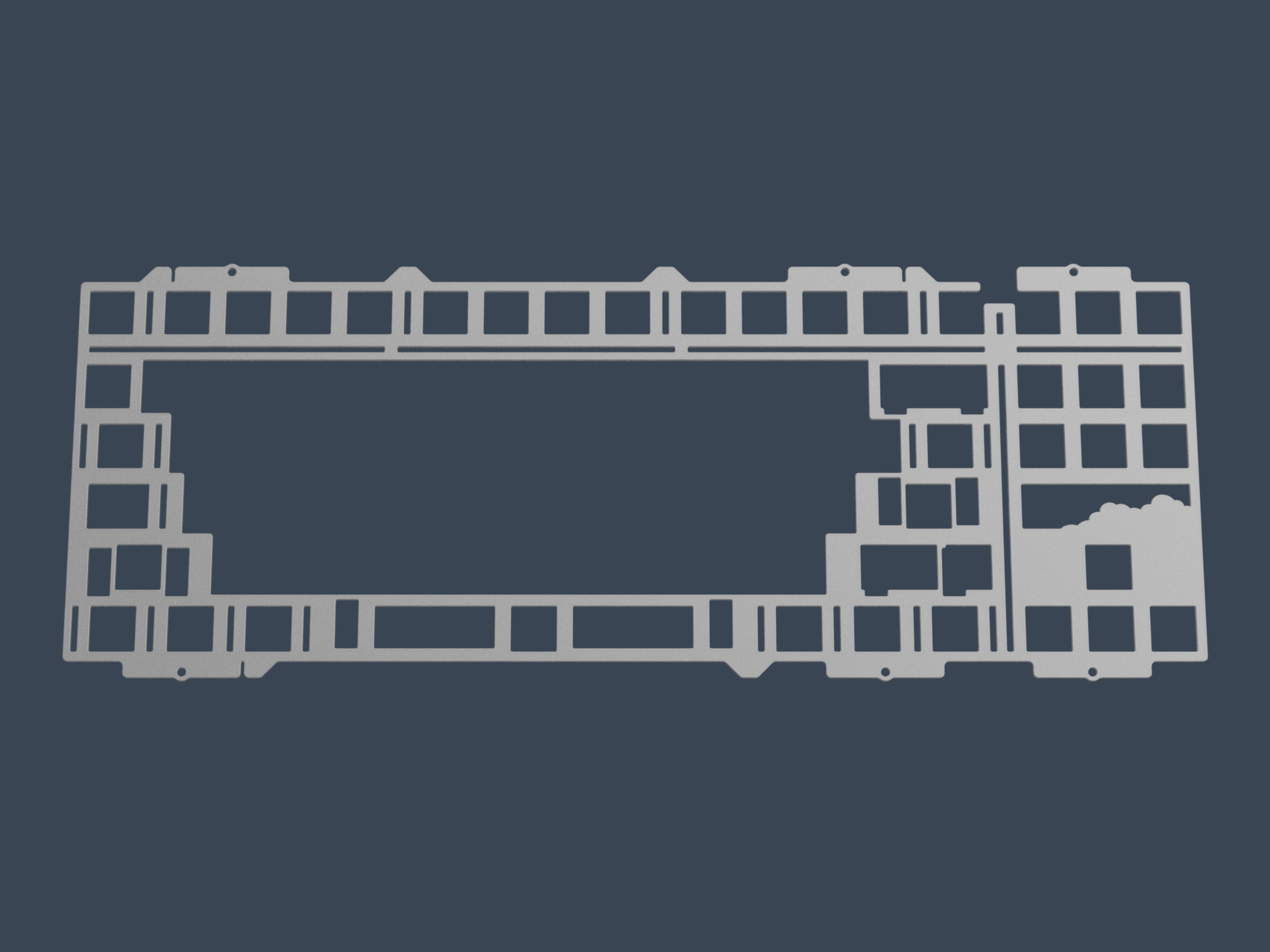

Extras: Alu Full/Half, PP Full/Half, PC Full, POM Half, FR4 full plate, Brass full plate
Case options: WK or WKL

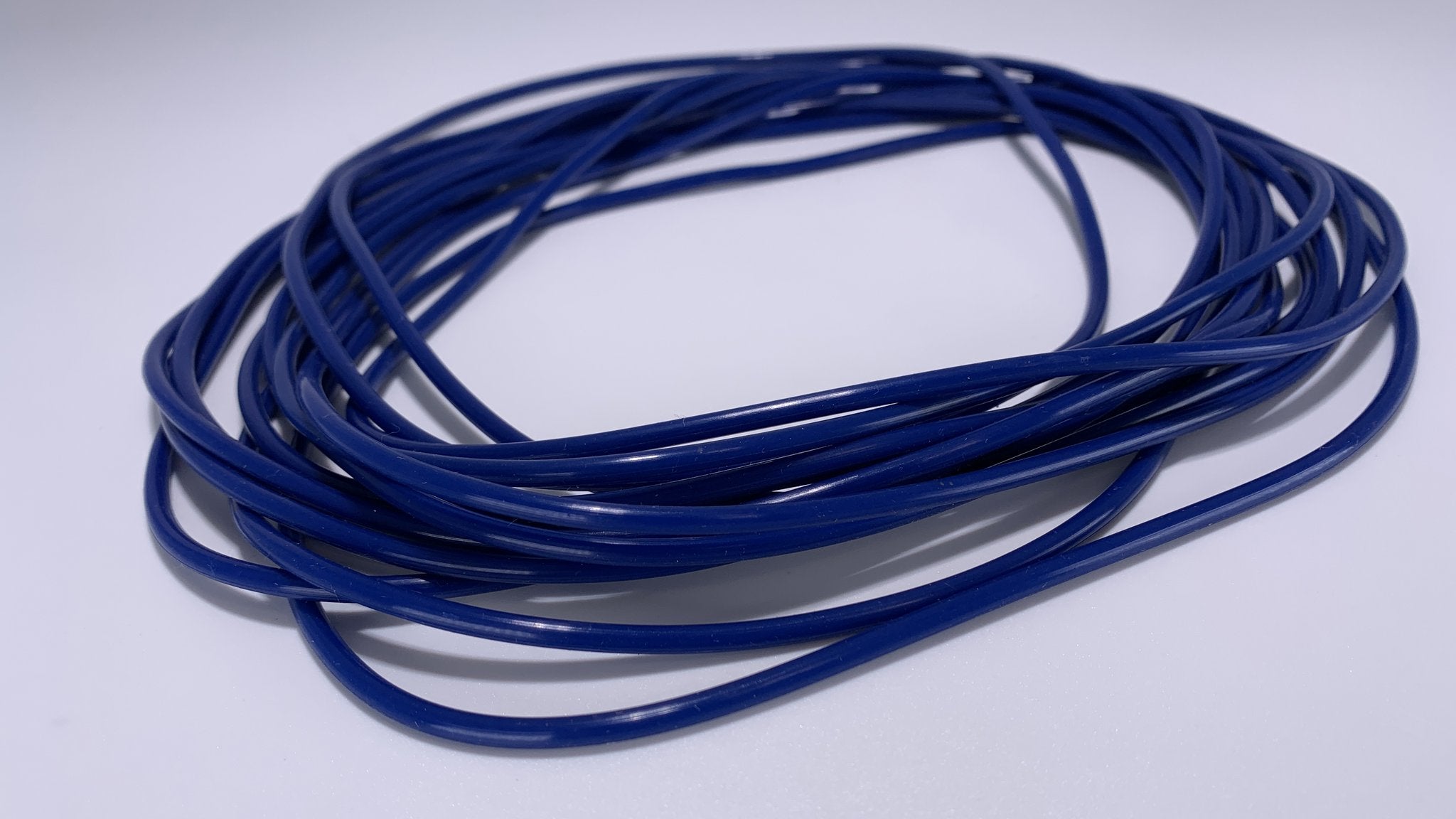

O-ring: 70a default. 30A and 50A available as extras. Color of o-rings TBD.
Weight: Aprx 6.2lbs unbuilt (Brass top Aprx 8lbs)
Cloudline Keyboard kit includes
SS internal frame
Solder PCB with Daughterboard and JST cable
Aluminum Full Plate (Black)
Hard foam carrying case
