[In Stock] H60 PCB

SGD$59.00

Shipping calculated at checkout.

Option

USB (NO JST Connector) JST (NO USB Connector)

Quantity

This PCB DOES NOT work with the Singa Unikorn. The Unikorn uses a different JST placement. Additional PCBs from this can be ordered from Singa directly.

60%, GH60 layout/mounting
USB Type-C connector
Two variants:

USB - USB Type-C. No JST connection. For boards with a USB cutout.
JST - JST SH 4-pin connector. No USB Type-C. Use only with daughterboards.
The missing connectors can be soldered onto both versions.
JST Version only comes with PCB, no daughterboard, you can use ai03's Unified Daughterboard.
RGB Underglow

Compatible with QMK and VIA
Cherry MX and Alps footprints
Cherry PCB-mount stabilizer support

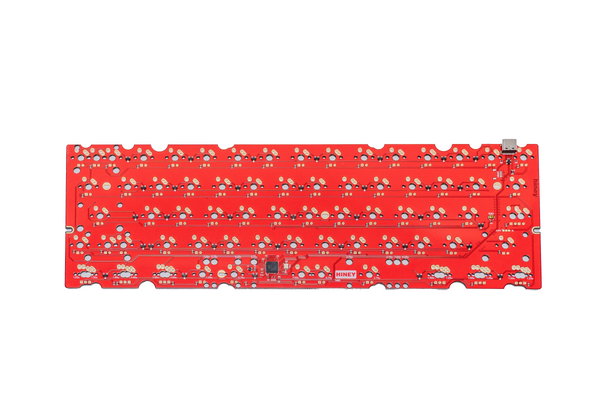

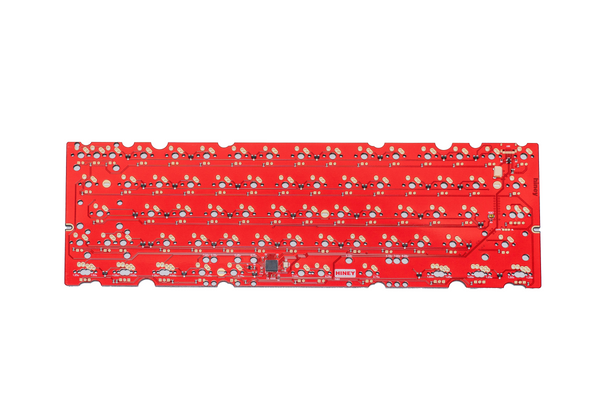

Some models have RGB underglow on the bottom side of the PCB.

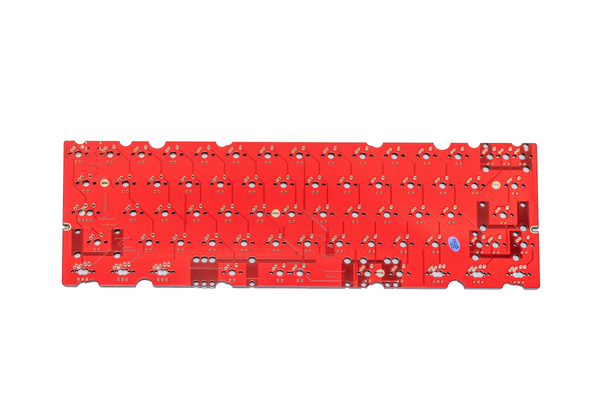

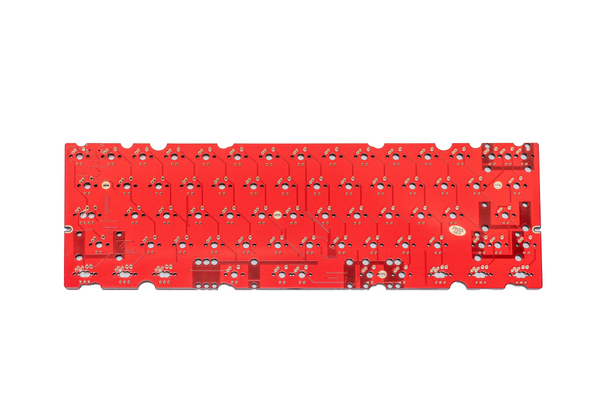

This is an ANSI-only PCB, with bottom row support. See the product images for specific layouts!
Black core FR4 + gloss red solder mask
Split space: 2.75 + 1.5 + 2.75 (fits 7u spots)
Nominal thickness is 1.60mm
