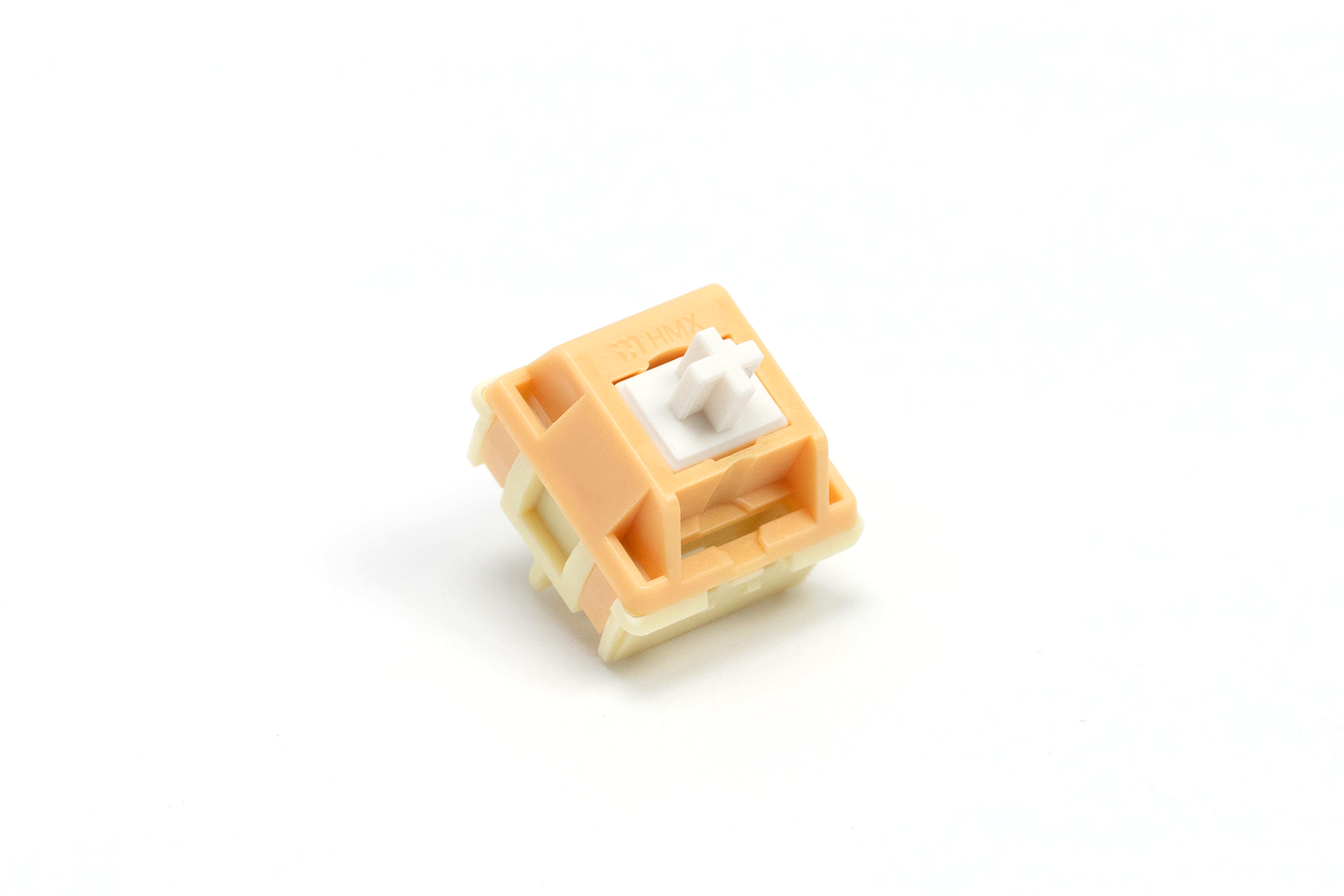

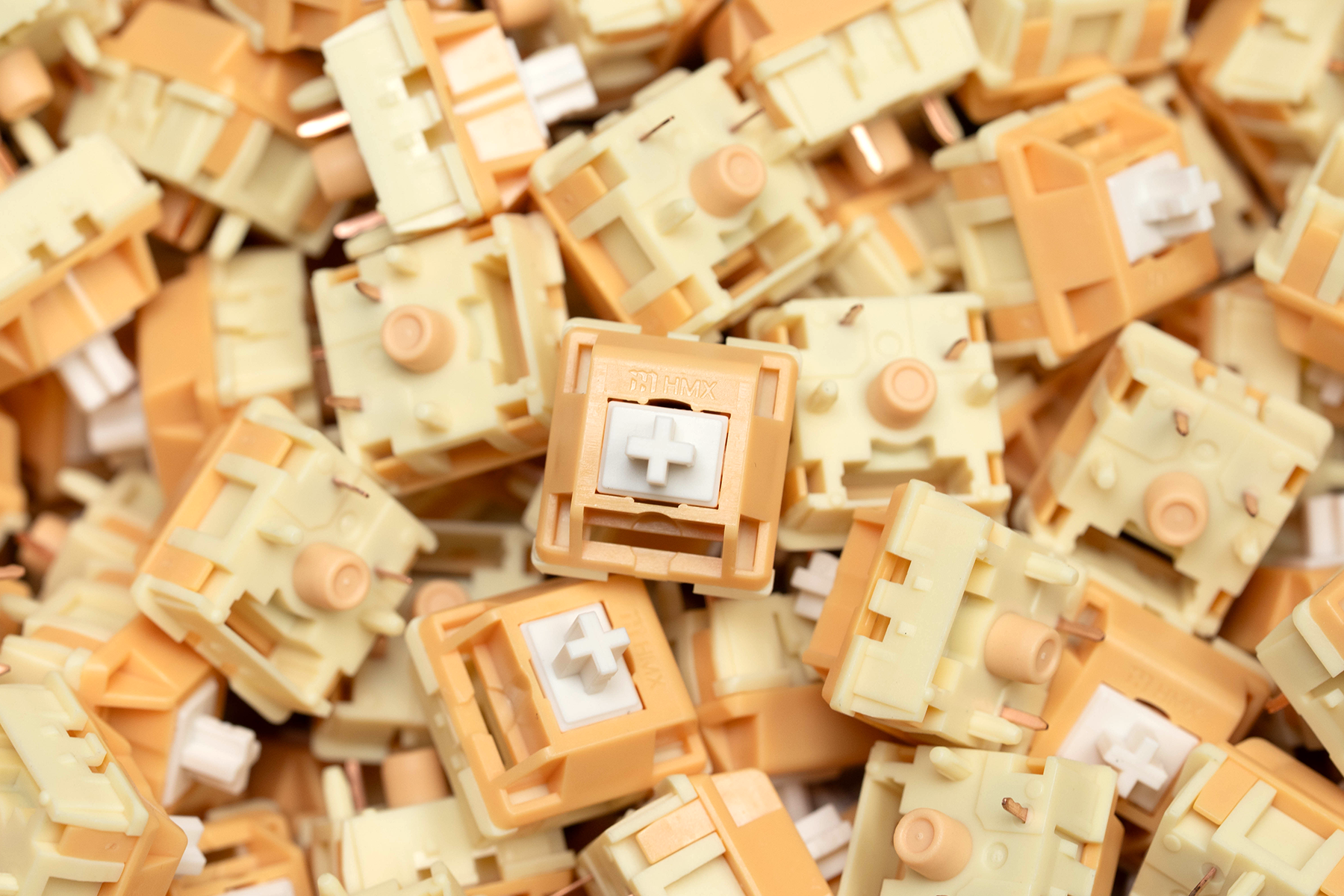

[In Stock] HMX Egg Yolk Linear Switches

The Egg Yolk features a split bottom housing that seats a rigid S1 post directly beneath the stem’s bottom-out point, delivering HMX’s crispest, clackiest sound yet. Compared with their signature high-pitched clack, the sound is rounder, fuller, and more substantial.

Paired with a hardened M2 stem, each 3.6mm keystroke feels glassy-smooth and finishes with a sharp, poppy snap on bottom-out.

• Type: Linear

• Top Housing Material: PC

• Bottom Housing Material: PA66 (with 10% Fiberglass)

• Bottom Housing Mast: S1
• Stem Material: M2 (Strengthened PP)

• Operating force: 42±2gf
• Bottom-out Force: 53±2gf
• Pre-travel: 2mm
• Total travel: 3.6±0.2mm

• Spring length: L=22mm
• Factory lubed: Yes
