The PCB is supported by silicon rubber standoffs attached to FR4 (fiberglass) leaf springs mounted to the case. Foam pads underneath the leaf springs provide vibration dampening and force modulation.
The leaf springs provide exceptional flexibility, allowing the entire plate/PCB subassembly to yield under keystrokes and vibrate in isolation from the case. The result is a typing experience that is soft and vibrant across the whole keyboard.
GB Starts: April 5th, 2021 GB Ends: May 5th, 2021 Est. shipping date: Q4 2021
4 x M2x3mm threaded spacers (for PCB mount to leaf springs)
8 x M2x3.5mm screws (for PCB mount to leaf springs)
12 x M2x4mm screws (for leaf spring mount to case)
4 x M3x5mm screws (for internal weight mount to case)
Weight and Dimensions
Aluminium Case: 987 g (2.18 pound)
Brass Internal Weight: 208 g (0.46 pound)
Width: 304.80 mm (12.00 inch)
Depth: 115.31 mm (4.54 inch)

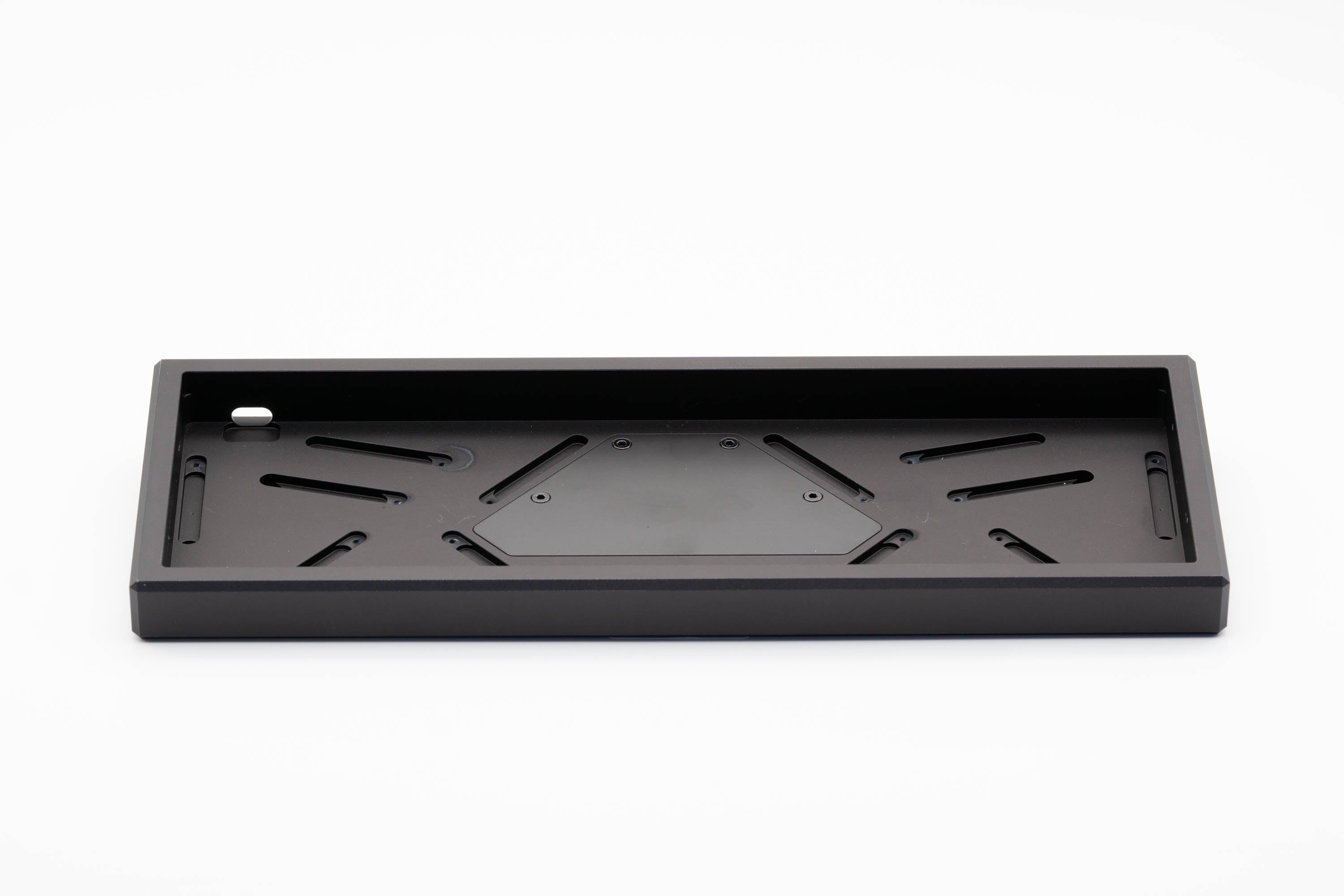

Bead-blasted anodized aluminium case
Bead-blasted cerakoted brass internal weight
Nickel plated, copper clad FR4 (fibreglass) plate
QMK compatible, fully programmable with VIA configurator
Made by Salvun
PCB Layout Support
Plate Layout Support
The images shown are renders of the product and are only used for illustration purposes. The end product may vary in color from the renders as they are not guaranteed to be 100% accurate to the end product. By purchasing this product, you are agreeing to the above terms. Any keyboards shown are not included and are only used to demonstrate the product in use.
GB and Refund Policy
If you purchased this product, you are agreeing to the GB andRefund Policy. For more information, check our FAQ. Please note that our price is SGD(Singapore Dollar) and inclusive of 7% GST.
